034 ADJUSTABLE MQB SOLID FRONT SWAY BAR,  MK7 VOLKSWAGEN GOLF/GTI/R, 8V AUDI A3/S3/RS3 & 8S TT/TTS/TTRS

034Motorsport is proud to offer the ultimate front sway bar upgrade for the Audi & Volkswagen MQB chassis! The 034Motorsport Solid Front Sway Bar is made from high-quality spring steel and utilizes one-piece construction for maximum rigidity.

Engineered to further reduce body roll and enhance steering feel, the 034Motorsport Solid Front Sway Bar is the perfect upgrade for those seeking to positively affect turn-in feel and virtually eliminate lean under hard cornering.

Note: We highly recommend installing the 034Motorsport MQB Solid Adjustable Rear Sway Bar before upgrading the front. Fitting an upgraded front sway bar to a car with a factory rear sway bar will increase understeer and inhibit handling performance.

PRODUCT DESCRIPTION:

034Motorsport is proud to offer the ultimate front sway bar upgrade for the MkVII Volkswagen Golf/GTI/R, 8V Audi A3/S3/RS3 & 8S Audi TT/TTS/TTRS! The 034Motorsport Adjustable Solid Front Sway Bar is made from a single piece of high-quality, 23.8mm thick spring steel for maximum rigidity, and is designed to provide more feedback from the front wheels without compromising comfort on the street.

Engineered to further reduce body roll and enhance steering feel, the 034Motorsport Solid Front Sway Bar is the perfect upgrade for those seeking to positively affect turn-in feel and virtually eliminate lean under hard cornering.

FEATURES:

• 23.8mm Diameter
• Solid Spring Steel Construction
• One-Piece Design
• 2-Way Adjustable

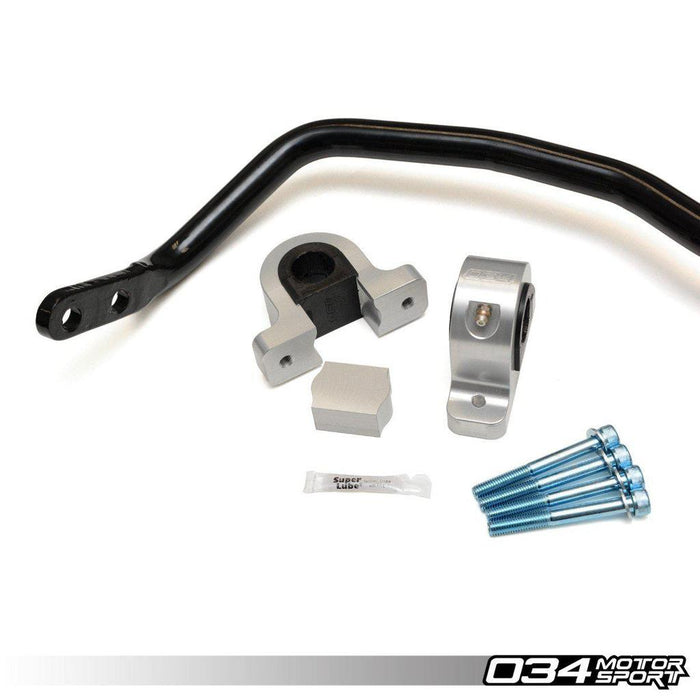

WHAT'S INCLUDED:

• 034Motorsport MQB Adjustable Solid Front Sway Bar Upgrade
• Polyurethane Sway Bar Bushings
• Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
• Sway Bar Bracket Installation Hardware Kit

FITMENT:

• 2015 - Present Audi A3/S3/RS3  (8V - MQB)
• 2015 - Present Audi TT/TTS/TTRS (8S - MQB)
• 2020 - Present Audi RSQ3 (F3-MQB)
• 2015 - Present Volkswagen Golf/GTI/R (MkVII - MQB)

SWAY BAR RATE DATA:

• 034Motorsport (Soft) - 18.5% Rate Increase vs. Factory 8V Audi S3 (24mm) Front Sway Bar
• 034Motorsport (Stiff) - 40.32% Rate Increase vs. Factory 8V Audi S3 (24mm) Front Sway Bar

Note: We highly recommend installing the 034Motorsport MQB Solid Adjustable Rear Sway Bar before upgrading the front. Fitting an upgraded front sway bar to a car with a factory rear sway bar will increase understeer and inhibit handling performance.

RECOMMENDED ALIGNMENT:

034Motorsport RS3 track use alignment specs; these specifications are optimal for a track driven car with a very "loose" handling attitude and lively rear end that drives towards oversteer. Caution should be used with these alignment specs as they can cause the car to over-rotate and spin, especially during throttle-lift conditions while turning:

• Front: (Tires: 265/35-18 Michelin Sport Cup 2)
  • Camber: -3.0 degrees each side (034-601-1013 camber mounts)
  • Caster: 7.1 degrees (not adjustable)
  • Toe: 0.6mm (toe-in) each side

• Rear: (Tires: 245/40-18 Michelin Sport Cup 2)
  • Camber: -1.5 degrees each side
  • Toe: 0.8mm (toe-in) each side

SKU: 034-402-1009
