034 - Audi B9 A4/S4/RS4/A5/S5/RS5 - X-Clear Driveshaft Tunnel Brace - 034-603-0029

$230.00

Product availability:

  • In stock - this product is in stock at an Australian local warehouse, despatched within next business day.

034 Motorsport Australia - Audi B9 A4/S4/RS4/A5/S5/RS5 - X-Clear Driveshaft Tunnel Brace

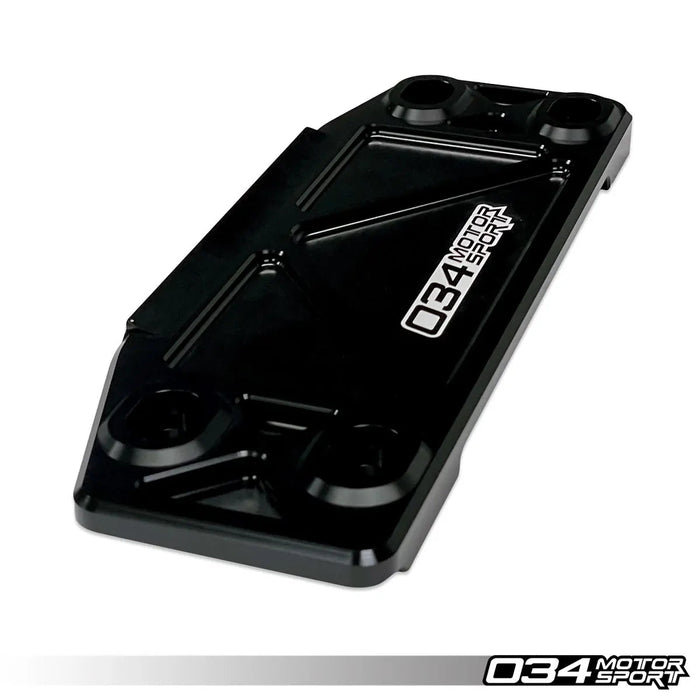

The X-Clear Driveshaft Tunnel Brace is designed to increase clearance for aftermarket exhausts by replacing the shallow-fitting OEM tunnel brace. This allows for a larger diameter exhaust to be installed without causing excessive rattling or vibration, while also utilizing an aeroflap to maintain OE like aerodynamics. The X-Clear Driveshaft Tunnel Brace replaces the factory brace with a CNC Machined Billet 6061-T6 Aluminum brace designed to increase exhaust clearance by 8mm over factory.

The X-Clear Driveshaft Tunnel Brace is designed to increase clearance for aftermarket exhausts by replacing the shallow-fitting OEM tunnel brace. This allows for a larger diameter exhaust to be installed without causing excessive rattling or vibration, while also utilizing an integrated aeroflap to maintain OE underbody aerodynamics.

The X-Clear Driveshaft Tunnel Brace replaces the factory brace with a CNC Machined Billet 6061-T6 Aluminum brace designed to increase exhaust clearance by 8mm over factory.

FEATURES:

  • Increase stiffness over OE stamped steel part
  • CNC Machined from Billet 6061-T6 Aluminum
  • Bright black anodizing, with laser etched 034Motorsport logo
  • Adds 8mm of additional clearance to exhaust compared to the OE part, allowing larger diameter (up to ½” diameter larger) aftermarket exhaust installation
  • Fast, easy installation
  • No added NVH

WHAT’S INCLUDED:

  • Billet tunnel brace
  • Mounting hardware (Qty. 4 Grade 12.9 M10 socket head screws)
Make Model Years Chassis Engine
Audi A4 2017+ B9/B9.5 2.0 TFSI
Audi A5 2018+ B9/B9.5 2.0 TFSI
Audi allroad 2017+ B9/B9.5 2.0 TFSI
Audi RS4 2017-present B9 2.9 TFSI
Audi RS5 2018+ B9/B9.5 2.9 TFSI
Audi S4 2018+ B9 3.0 TFSI
Audi S5 2018+ B9/B9.5 3.0 TFSI


The installation of your 034Motorsport X-Clear Driveshaft Tunnel Brace B9/B9.5 Audi A4/S4/RS4 & A5/S5/RS5 is a straightforward process that will take approximately 30 minutes to complete.

Download the 034Motorsport X-Clear Driveshaft Tunnel Brace B9/B9.5 Audi A4/S4/RS4 & A5/S5/RS5 Install Guide


SKU: 034-603-0029
