034 Motorsport - Suspension Lift Kit, Volkswagen Golf MK7 Alltrack - 034-404-Z002

034 Motorsport - Suspension Lift Kit, Volkswagen Golf MK7 Alltrack - 034-404-Z002

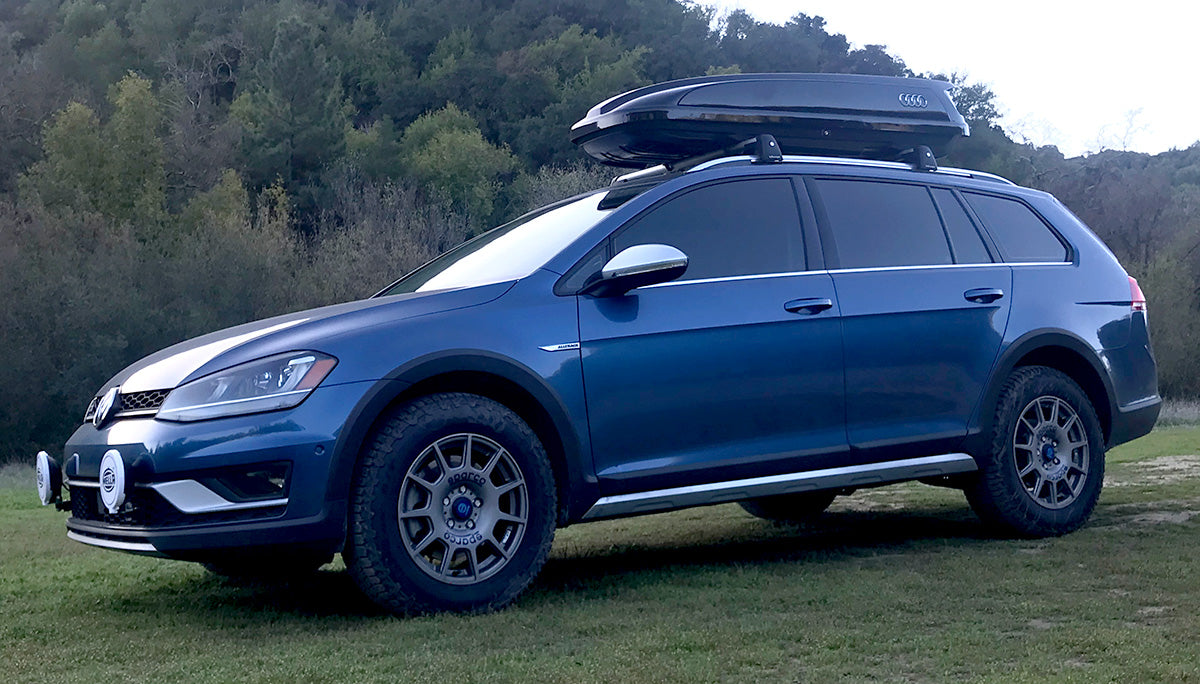

Volkswagen designed the Golf Alltrack to blend practicality with all-weather performance—but left limited ground clearance on the table. The 034Motorsport Suspension Lift Kit corrects this, giving the Alltrack the extra ride height it deserves for overlanding, rough roads, and everyday obstacles like speed bumps and steep driveways.

This precision-engineered lift kit increases ride height by 1.3” (34mm) in the front and 0.6” (13mm) in the rear, resulting in a level, no-rake stance with improved ground clearance, approach angles, and fender clearance—without compromising ride quality or alignment integrity.

Why This Kit Is Different

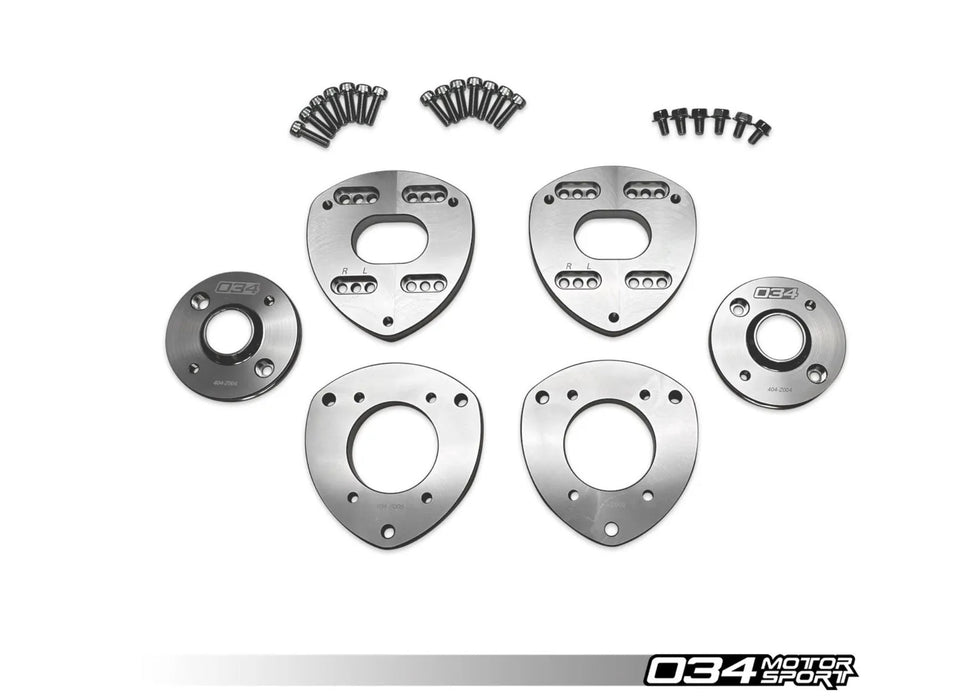

Lifting MQB vehicles normally introduces unwanted positive camber and caster, leading to accelerated tire wear and reduced tire contact patch. 034Motorsport solves this with precision-machined 6061-T6 aluminum spacers featuring alignment-correcting slots, allowing you to retain factory alignment specs after installation.

Two configurations are available depending on your setup:

Camber + Caster Correction – Recommended for best handling and factory-like suspension response

Camber-Only Correction – Ideal for large tire setups where additional caster may cause fender liner rubbing.

Key Features

Front Lift: 34mm (1.3”)

Rear Lift: 13mm (0.6”)

CNC-machined 6061-T6 aluminum construction

Minimal NVH increase

Completely bolt-in & reversible design

Aluminum spacers will not pack out over time

Built-in camber and caster correction to maintain factory alignment

Camber-only option to reduce rubbing with oversized tires

Rear spring centering cups included

Reuses factory rear spring isolators

Installation Notes (Important)

2018+ Alltrack / 4Motion SportWagen Axle Revision

Some 2018+ vehicles use a shorter driver-side axle that may introduce noise after lifting.

Recommended fix:

Replace with driver-side axle 5QM 407 271 E

Tire Sizing

Testing showed slight rubbing with 215/65R16 tires using camber + caster correction

For tire diameters 26.5” or larger, use the center (camber-only) slot during installation

Axle Bolt

Some models require axle removal to drop the strut assembly.

Replacement bolt: WHT 005 437 (M16 × 1.5 × 70

Vehicle Compatibility

Audi

A3 (8V) 2015–2016 – 1.8 TFSI / 2.0 TDI

A3 (8V / 8V.5) 2015–2020 – 2.0 TFSI

S3 (8V / 8V.5) 2015–2020 – 2.0 TFSI

RS3 (8V.5) 2017–2020 – 2.5 TFSI EVO

TT / TTS (8S) 2016–2020 – 2.0T Gen 3

TT RS (8S) 2018–2020 – 2.5 TFSI EVO

Volkswagen

Golf / Golf 7.5 2015–2020 – 1.8T / 2.0 TDI

GTI 2015–2021 – 2.0T Gen 3

Golf R 2015–2019 – 2.0T Gen 3

Golf Alltrack 2015–2020 – 1.8T Gen 3

Golf SportWagen 2015–2020 – 1.8T Gen 3

GLI 2018–Present – 2.0T Gen 3

E-Golf 2015–2020

Note: When installing on vehicles other than the Alltrack, ensure axle travel and suspension articulation remain within safe limits.

---

Installation Time

Estimated install time: 4–5 hours

Fully bolt-in design

Professional alignment recommended after installation

---
