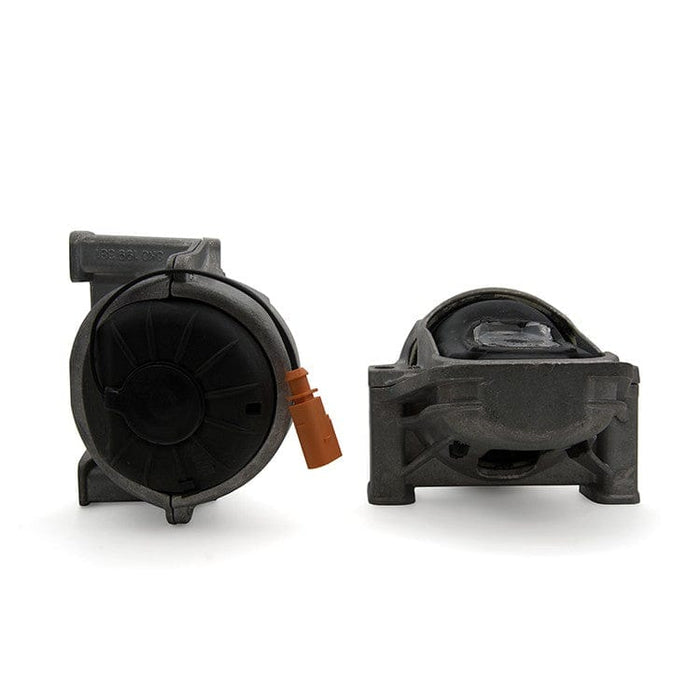

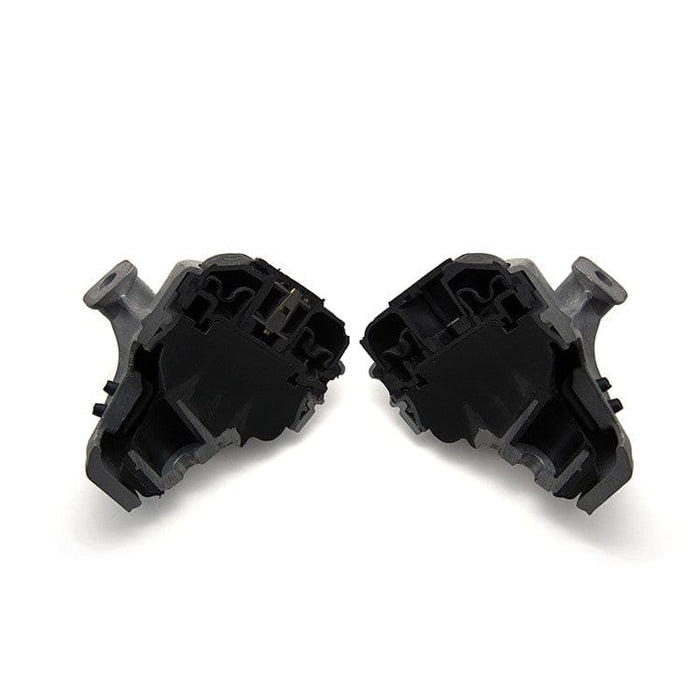

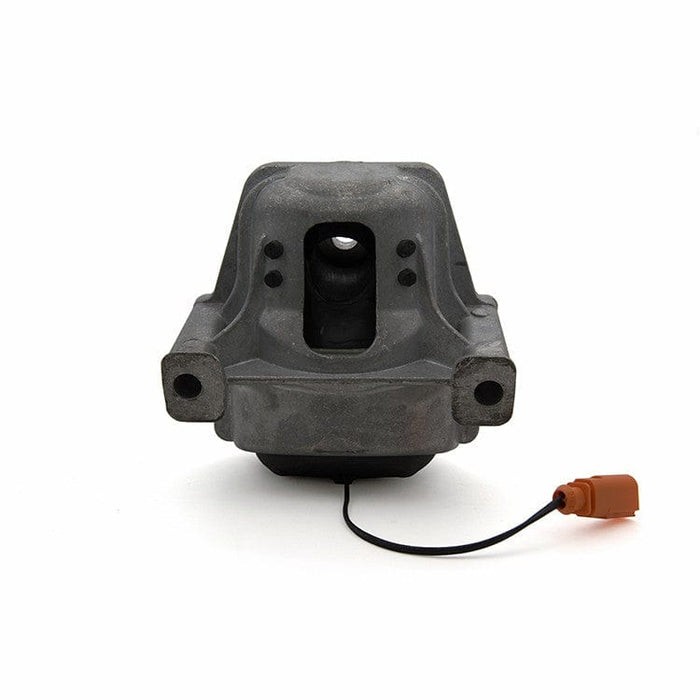

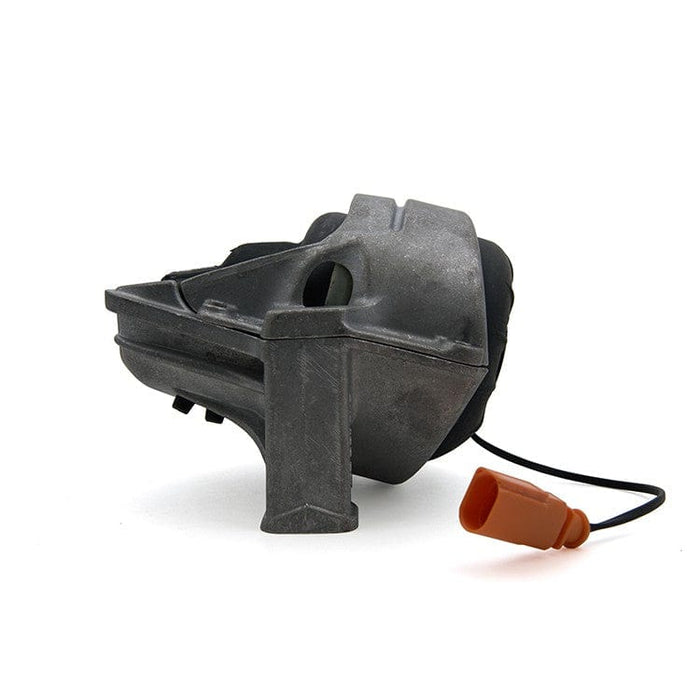

034-509-0061-SD - MOTOR MOUNT, STREET DENSITY LINE, AUDI B8/B8.5 A4/A5/Q5 2.0 TFSI

034 Motorsport – Street Density Motor Mount (2.0 TFSI)

For Audi B8/B8.5 A4, A5, Q5, Allroad
Sold Individually (One Vehicle Requires 2 Mounts)

034Motorsport’s Street Density Motor Mounts are engineered as a refined, high-performance replacement for the factory hydraulic mounts found on the Audi B8/B8.5 2.0 TFSI platform. Designed with improved durability, ride comfort, and long-term performance in mind, these mounts use 45 durometer vulcanized rubber and void-free construction to significantly reduce drivetrain movement while maintaining OEM-like NVH levels.

The mount bodies are produced from high-quality cast aluminium using OEM-style manufacturing techniques. For vehicles equipped with active electronic engine mounts, integrated plug-and-play emulators ensure proper factory communication—fully preventing any check engine lights or error codes.

Unlike polyurethane alternatives, 034Motorsport density mounts offer superior damping characteristics, withstand shear forces more effectively, and maintain long-term consistency without packing, collapsing, or leaking like factory hydraulic mounts.

Technical Advantages of Density Line Rubber Mounts

• Rubber can absorb stress under tension, compression, and shear—polyurethane cannot

• High-durometer rubber provides consistent long-term damping without packing or deformation

• Void-free and fluid-free design eliminates the failures common in factory mounts

• Rubber offers superior NVH control while still improving drivetrain stability

• Cast aluminium housings and OE-style construction ensure factory-quality longevity

INSTALLATION GUIDE:

Professional installation is strongly recommended.

The installation of your 034Motorsport Street Density B8/B8.5 Audi Motor Mounts is a relatively involved process that will take approximately 4-5 hours to complete. You can access our detailed installation guide by clicking the icon on the left. We highly recommend having these mounts installed by an experienced mechanic. The installation process is the same as the factory mount remove and replace procedure. Our installation guide is meant to supplement the factory procedure.

 Download 034Motorsport Street Density B8/B8.5 Audi Motor Mounts Install Guide

Features:

• 45 Durometer Street Density rubber with void-free construction

• Built-in electronic emulator for vehicles with factory active engine mounts

• Plug-in connector ensures MIL-free (no fault code) operation

• Reduced drivetrain slop and engine movement under load

• More direct power transfer and improved shifting feel

• Cast aluminium mount body for OEM-level strength and fitment

• Complete drop-in replacement for the factory hydraulic engine mounts

• Sold individually — 2 required per vehicle

Service Part:

This is a direct-fit service replacement and performance upgrade for failing OEM mounts. Ideal for restoring ride quality and improving drivetrain stability.

Fitment Table:

Quantity Required:

• 1 per side

• 2 mounts required per vehicle

Disclaimer:

Always consult with a professional mechanic. If unsure, please contact us for compatibility via email: info@vaggarage.com.a

SKU: 034-509-0061-SD
