IE High Flow Turbo Charge Pipe - Audi A3/S3 8V VW MK7/7.5 GTI/R (2.0T)

$519.95

backorder
  • This product is on backorder and ships from a local Australian warehouse.
  • Shipping time is approximately in 2 weeks . Transit time is usually 2-3 days.
  • Ships via AUSPOST Express or Couriers Please Express.

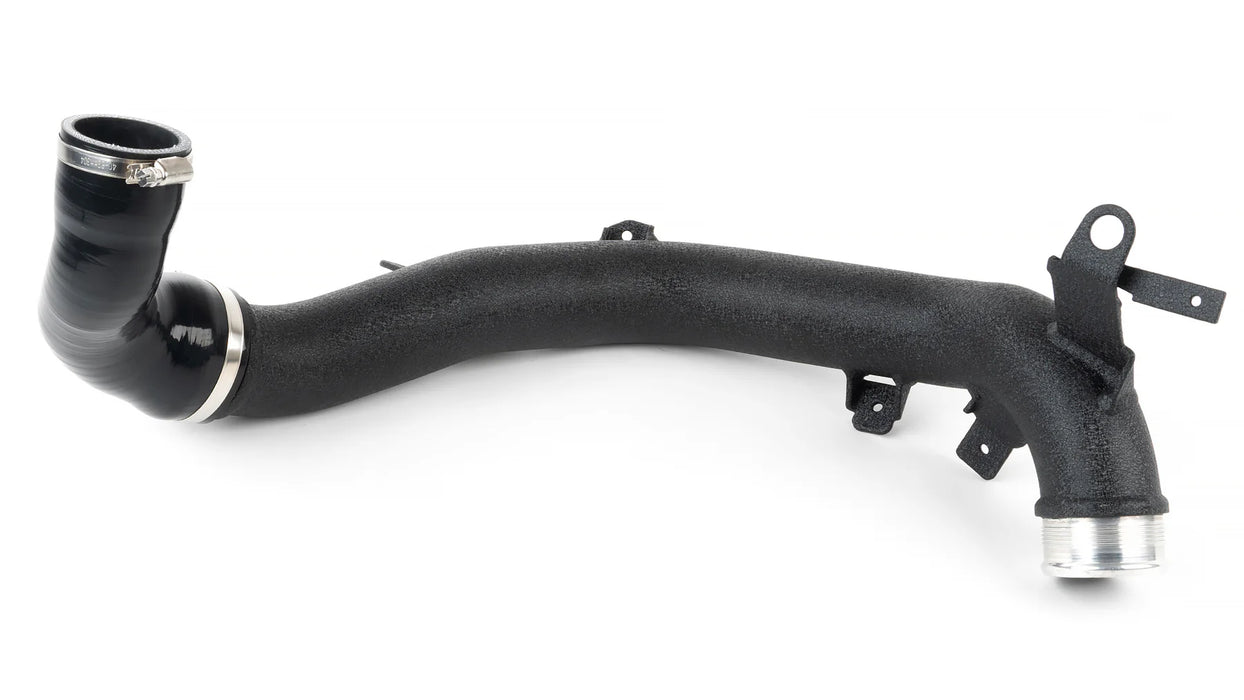

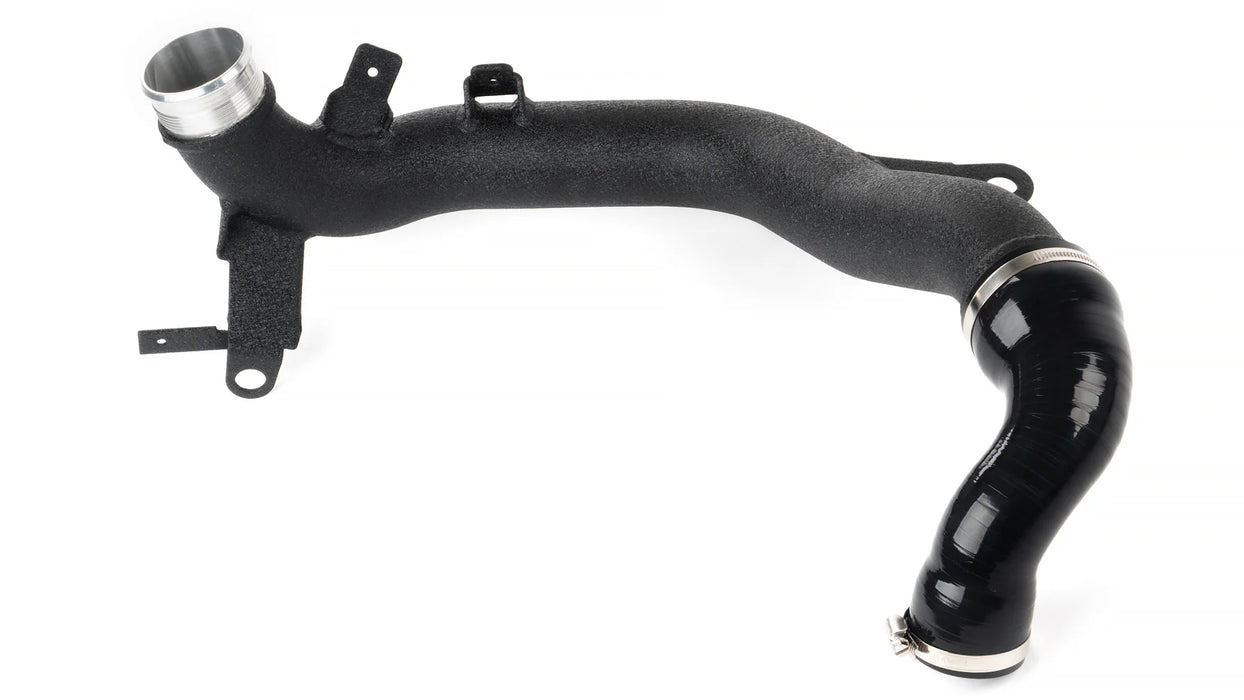

IE High Flow Turbo Charge Pipe - Audi A3/S3 8V VW MK7/7.5 GTI/R (2.0T)

WIDE ANGLE

Stock turbo charge pipes aren’t made for taking what you can dish out. These hard plastic pipes have an inconsistent pipe diameter that can kill flow and cause cracks and leaks. iE’s turbo charge pipe with an aluminum performance design that’s mandrel bent to retain a constant diameter for the cleanest airpath possible.

AIR SUPERIORITY

iE's Turbo Charge Pipe replaces the flow-killing bends and pinched walls of the factory pipe and takes advantage of all available space to maximize airflow, up to 31.36% increase in flow over stock!

Back-to-back flow bench testing shows consistent airflow gains over the stock turbo outlet pipe. The data chart details flow gains (CFM) over stock.

-IN. H20 STOCK CHARGE PIPE iE CHARGE PIPE % INCREASE

-5

118 CFM

155 CFM

31.36%

-10

168 CFM

210 CFM

25.00%

-15

204 CFM

245 CFM

20.10%

-20

234 CFM

278 CFM

18.80%

-25

258 CFM

307 CFM

18.99%

-30

278 CFM

332 CFM

19.42%


CONNECTIONS THAT DON'T SUCK

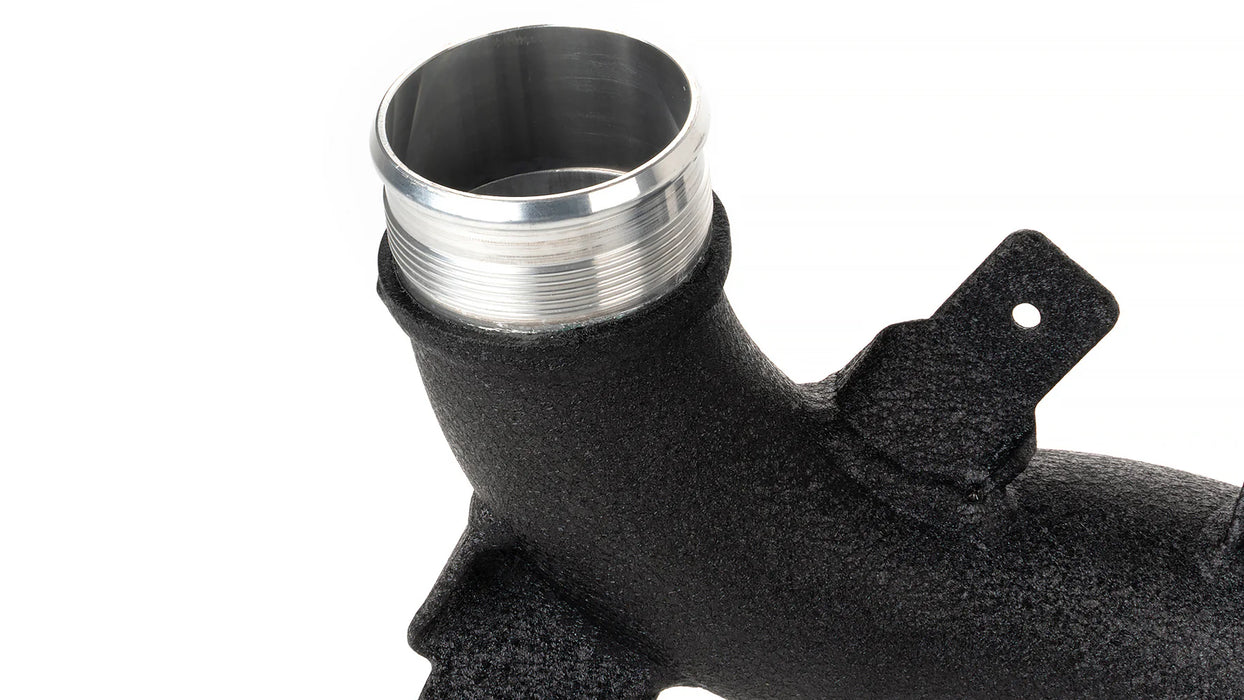

Aftermarket charge pipes are made from thin-walled aluminum that’s been bead-rolled at the end. They can easily be crushed when tightening hose clamps, leading to boost leaks. Our hose ends are made of thick precision CNC-machined billet aluminum and TIG welded for crush-resistant hose connections. Hoses stay tight on machined large grip-lock ribbing, so you never have to worry about boost leaks.

FITS LIKE A GLOVE

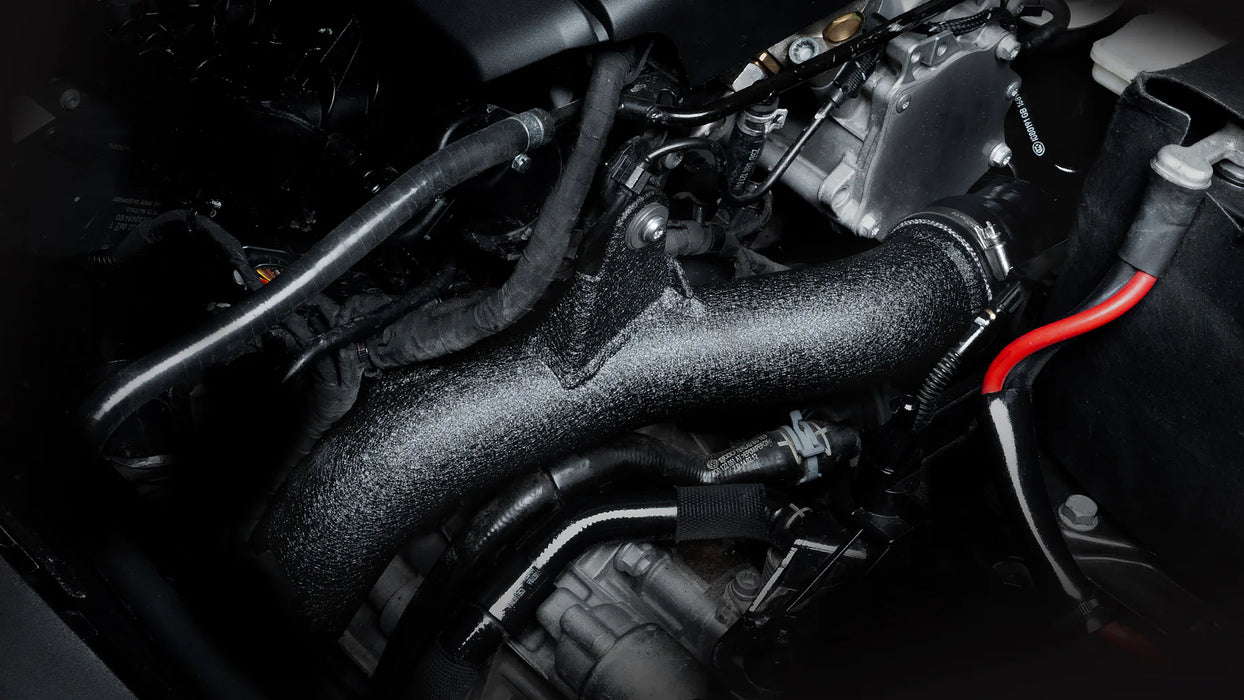

iE engineers used advanced 3D scanning and design software to include all factory mount points. These TIG-welded brackets retain all the factory harness, hose, and clip mounts for a proper factory-like quality install free of hanging or rubbing parts.

FEATURES AND BENEFITS
  • 50% larger than restrictive pinched plastic stock pipe
  • Constant diameter delivers 31.36% increase in flow
  • Reduces airflow turbulence directly out of the turbo
  • Mandrel bent and TIG welded aluminum
  • Thick CNC machined hose ends
  • Retains all factory mounting points
  • Powder coat finish for a long-lasting, attractive look

 FITMENT TABLE

Year Make Model Chassis Submodel
2016 - 2020 Audi A3 8V (2D Convertible) 40 TFSI - CZPB 2.0L Turbo Petrol FWD (140kW)
2016 - 2020 Audi A3 8V (2D Convertible) 40 TFSI Quattro - CZPB 2.0L Turbo Petrol AWD (140kW)
2016 - 2020 Audi A3 8V (4D Hatch) 40 TFSI Quattro Sportback - CZPB 2.0L Turbo Petrol AWD (140kW)
2016 - 2020 Audi A3 8V (4D Hatch) 40 TFSI Sportback - CZPB 2.0L Turbo Petrol FWD (140kW)
2016 - 2020 Audi A3 8V (4D Sedan) 40 TFSI - CZPB 2.0L Turbo Petrol FWD (140kW)
2016 - 2020 Audi A3 8V (4D Sedan) 40 TFSI Quattro - CZPB 2.0L Turbo Petrol AWD (140kW)
2014 - 2016 Audi S3 8V (2D Convertible) 2.0 TFSI Quattro - CJXF 2.0L Turbo Petrol AWD (210kW)
2016 - 2020 Audi S3 8V (2D Convertible) 2.0 TFSI Quattro - DJHB 2.0L Turbo Petrol AWD (213kW)
2013 - 2014 Audi S3 8V (4D Hatch) Sportback 2.0 TFSI Quattro - CJXB 2.0L Turbo Petrol AWD (206kW)
2016 - 2020 Audi S3 8V (4D Hatch) Sportback 2.0 TFSI Quattro - CJXD 2.0L Turbo Petrol AWD (213kW)
2014 - 2016 Audi S3 8V (4D Hatch) Sportback 2.0 TFSI Quattro - CJXF 2.0L Turbo Petrol AWD (210kW)
2016 - 2020 Audi S3 8V (4D Hatch) Sportback 2.0 TFSI Quattro - DJHB 2.0L Turbo Petrol AWD (213kW)
2014 Audi S3 8V (4D Sedan) 2.0 TFSI Quattro - CJXB 2.0L Turbo Petrol AWD (206kW)
2016 - 2020 Audi S3 8V (4D Sedan) 2.0 TFSI Quattro - CJXD 2.0L Turbo Petrol AWD (213kW)
2014 - 2016 Audi S3 8V (4D Sedan) 2.0 TFSI Quattro - CJXF 2.0L Turbo Petrol AWD (210kW)
2016 - 2020 Audi S3 8V (4D Sedan) 2.0 TFSI Quattro - DJHB 2.0L Turbo Petrol AWD (213kW)
2014 - 2017 Volkswagen Golf Mk7 (4D Hatch) GTi - CHHA 2.0L Turbo Petrol FWD (169kW)
2013 - 2017 Volkswagen Golf Mk7 (4D Hatch) GTi - CHHB 2.0L Turbo Petrol FWD (162kW)
2016 - 2017 Volkswagen Golf Mk7 (4D Hatch) GTi - CXDA 2.0L Turbo Petrol FWD (162kW)
2016 - 2017 Volkswagen Golf Mk7 (4D Hatch) GTi 40 Years - CJXE 2.0L Turbo Petrol FWD (195kW)
2013 - 2017 Volkswagen Golf Mk7 (4D Hatch) R - CJXB 2.0L Turbo Petrol AWD (206kW)





INSTALLATION GUIDE

The iE turbo charge pipe install is pretty straightforward with no permanent modifications. You’ll need a few basic tools and maybe a decent shop playlist.

AVERAGE INSTALL TIME: 2 HOURS



  SKU: IETPCI3
