034 Motorsport - Audi B8/B8.5 S4/S5 Supercharger Heat Exchanger Upgrade Kit - 034-102-1000
- This product is in stock and ships from a local Australian warehouse.
- Shipping time is approximately same or next business day . Transit time is usually 2-3 days.
- Ships via AUSPOST Express or Couriers Please Express.
034 Motorsport Australia - Audi B8/B8.5 S4/S5 Supercharger Heat Exchanger Upgrade Kit - 034-102-1000
Audi B8 3.0 TFSI Heat exchanger upgrade for the supercharged 3.0 TFSI.
Significantly reduces intake air temperatures - Core size increased From 148 sq. in. to 341 sq. in, and frontal area increased by 130% over stock cooler!
The 034 Motorsport Supercharger Heat Exchanger Upgrade Kit for the Audi B8/B8.5 is an excellent stock-location intercooler for the 2010-2017 Audi S4. Testing has proven that this heat exchanger upgrade is capable of significantly reducing intake air temperatures. The increased thermal capacity of this supercharger heat exchanger kit makes this a strongly recommended upgrade for Stage 1 and Stage 2 tunes, and a required upgrade for higher levels of power.

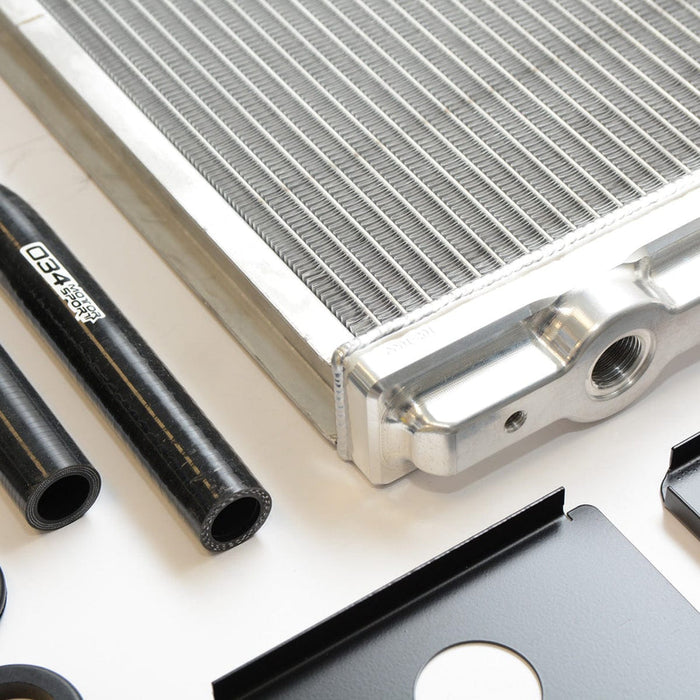

Our unique billet aluminium CNC machined end tanks with configurable coolant paths can be set up as single-pass for the B8 S4, or as dual-pass for the B8.5 S4. The oversized core is 130% larger than the stock heat exchanger, increasing frontal area from 148 square inches to 341 square inches, and still fits neatly behind the stock crash bar. Custom molded multilayer silicone hoses are provided for a precise fit with excellent durability. The silicone hoses pass through provided air duct sealing panels that fill the voids left by the stock heat exchanger and prevent air spill around the radiator core. Both end tanks have bleeder plugs to ensure that all air can be easily removed from the system without requiring special tools.
The 034 Motorsport Supercharger Heat Exchanger Upgrade Kit is a comprehensive package and an obvious choice to reduce and stabilize intake air temperatures for additional power production at every level of engine modification, from stock to highly modified!
FEATURES
- Significantly Reduces Intake Air Temperature Over Stock
- Frontal Area Increased by 130% for Significant Additional Cooling
- Core Size Increased From 148 sq. in. to 341 sq. in.

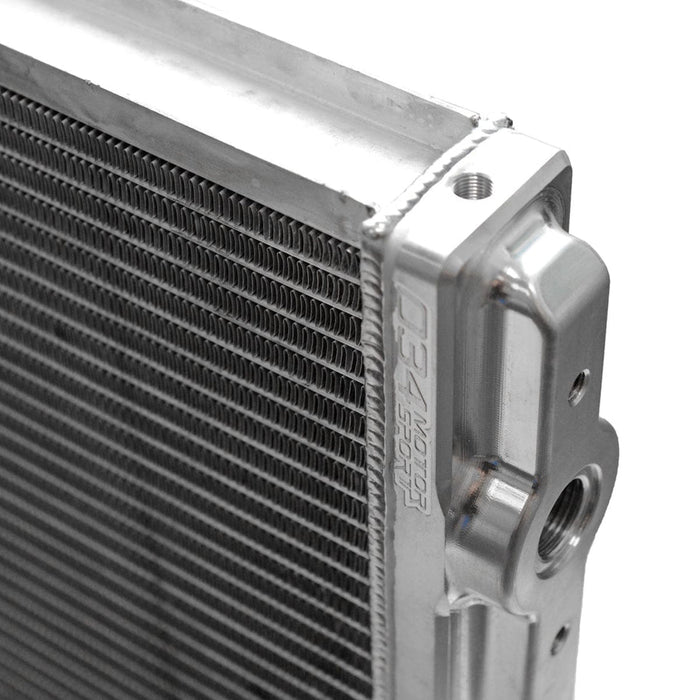

- Beautiful 6061 Billet Aluminium CNC Machined End Tanks
- Configurable as Single-Pass or Dual-Pass
- Custom Molded Silicone Hoses For Precise Fit
- Air Duct Sealing Panels to Maintain Proper Airflow Through Radiator
- Both End Tanks Have Bleeder Plugs to Eliminate Trapped Air
- Comprehensive Kit Includes 54 Components For Perfect Fit and Function
- Easy To Install and Reversible
Fitment Table
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | S4 | 2010–2012 | B8 | 3.0 TFSI Supercharged |
| Audi | S4 | 2012–2017 | B8.5 | 3.0 TFSI Supercharged |
| Audi | S5 | 2013–2017 | B8.5 | 3.0 TFSI Supercharged |
| Audi | Q5 | 2013–2017 | B8.5 | 3.0 TFSI Supercharged |
| Audi | SQ5 | 2013–2017 | B8.5 | 3.0 TFSI Supercharged |
Service Part
-
No regular service parts required
Installation Notes
-
Direct replacement for OEM heat exchanger
-
Fits behind the factory crash bar
-
Configurable for B8 (single-pass) or B8.5 (dual-pass)
-
Includes all required hoses, fittings, and panels
-
Bleeder plugs allow quick, tool-free air removal
-
Professional installation recommended
- Download the 034Motorsport Supercharger Heat Exchanger Upgrade Kit Install Guide
Disclaimer
Fitment information is provided as a guide only. Improper installation may cause damage or reduced performance.Always contact a professional mechanic for installation or diagnosis.If unsure or need any help, please contact us at info@vaggarage.com.au
SKU: 034-102-1000
