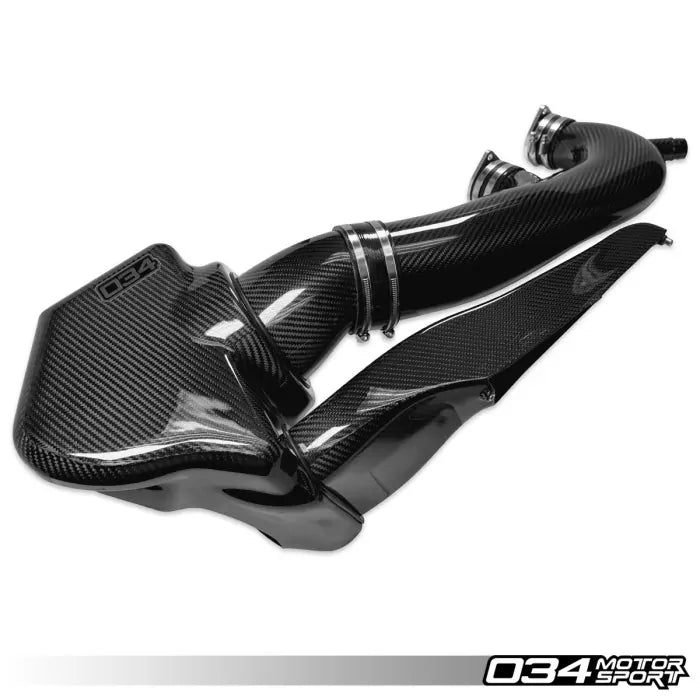

034 Motorsport Australia - X34 SüperDüper Insuction Bundle - Audi B9RS4/RS5 2.9 TFSI - 034-108-1085
SüperDüper Carbon Fibre Turbo Inlet & Insuction Bundle Features:
- CNC Machined 6061-T6 Aluminium Compressor Inlet Flange Adapters for Smooth Airflow Into Compressor Housings
- CNC Machined 6061-T6 Aluminium Turbo Inlet Adapters to Match Turbo Inlet for Maximum Airflow
- Optional Adapter Flanges Available
- Retains OE PCV Hose Connections
- Proven Power/Torque, and Airflow Gains
- Longer Engine Cover Studs to Help Clear the SüperDüper Inlet
- Deeper Oil Filler Seal to Accommodate Raised Engine Cover
- Direct Bolt-on Installation.
each unique turbocharger set to generate a smooth transition of airflow into the turbocharger and enhance airflow velocity. The interchangeable Turbo Adapter Flanges for the stock turbochargers are included with the X34 SüperDüper Insuction Bundle, with optional TTE720 Adapter Flanges available separately.
The adapter flanges make the installation and removal of the SüperDüper Turbo Inlet easier than ever. From the factory, unique and special tools are required to loosen and remove the OE turbo inlet due to the tight space constraints. With these Turbo Adapter Flanges, users can more easily remove the entire intake system with easily accessible hose clamps. You can loosen two hose clamps rather than fight with hidden bolts underneath the intake system!

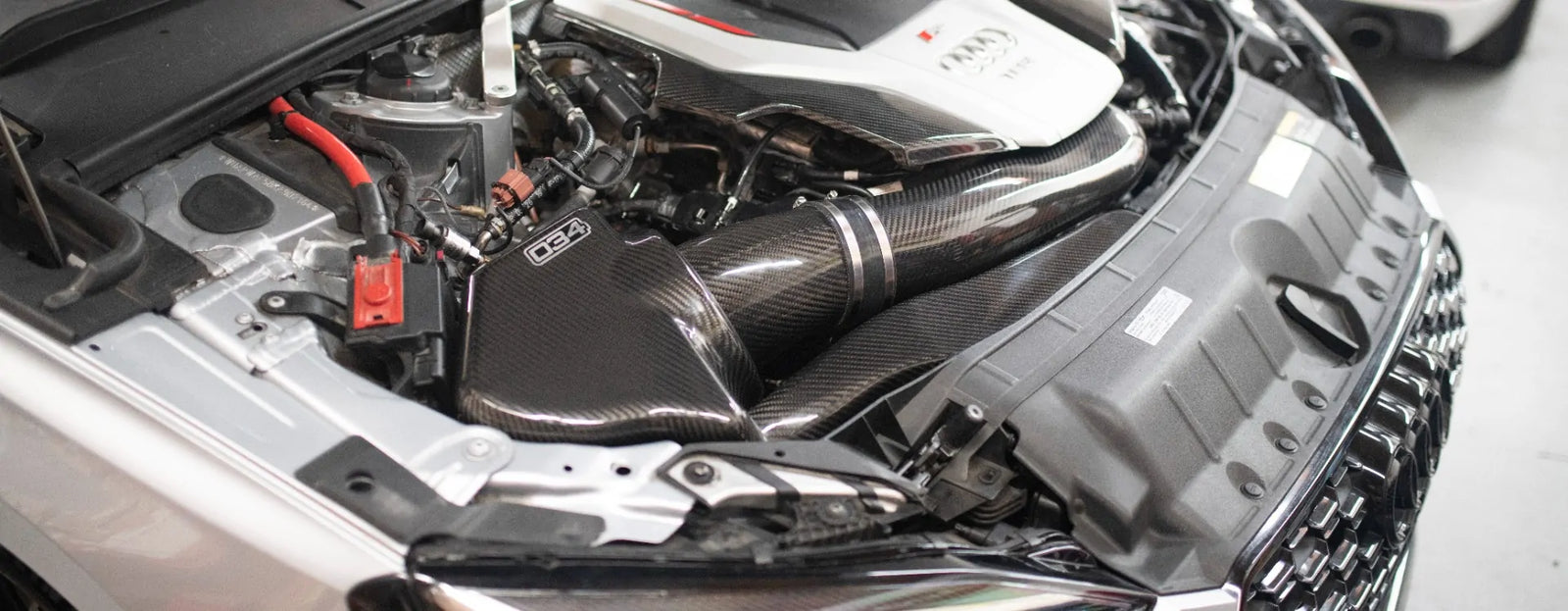

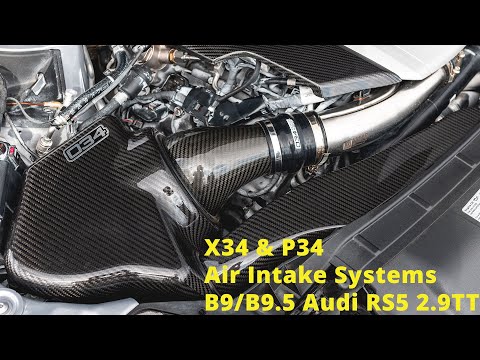

This iterative design and engineering process helped us achieve the high-performance, elegantly-designed X34 SüperDüper Insuction Bundle. Harmoniously fitting into the engine bay of your RS4 or RS5, the X34 Carbon Fibre Intake System is engineered to be the highest-flowing intake option on the market, easily surpassing the stock restrictive airbox and turbo inlet, as well as competitor options. With our years of experience offering intake systems that perfectly balance style with performance, the X34 Carbon Fibre Intake is certainly no exception - producing beautiful turbocharger sounds coupled with a beautiful carbon fibre intake shield, a massive air filter, and an equally impressive turbo inlet.

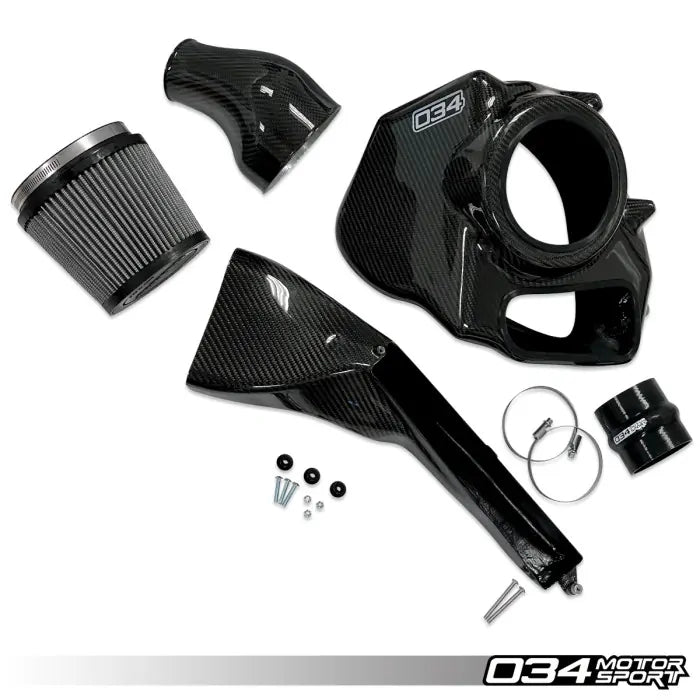

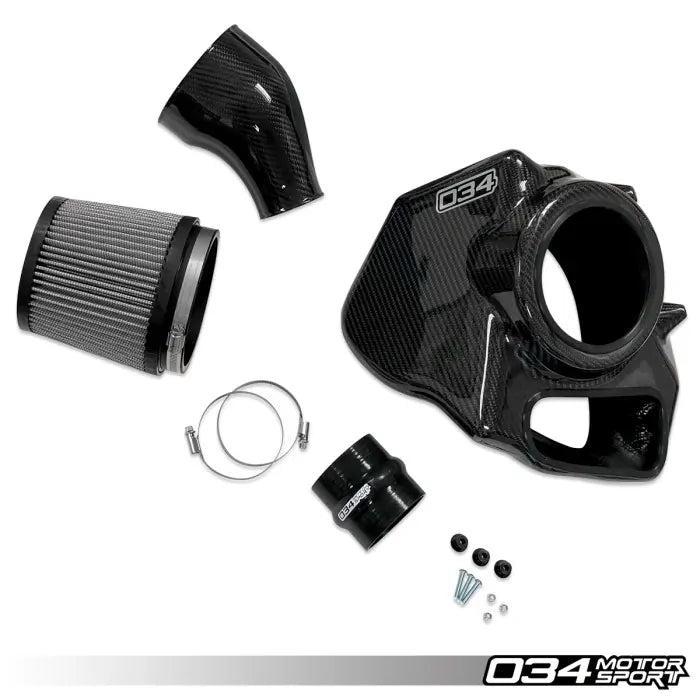

X34 CARBON FIBER FULL INTAKE SYSTEM FEATURES:
- Developed In-House by 034Motorsport's Engineering Team
- Fits Both Left and Right Hand Drive Configurations

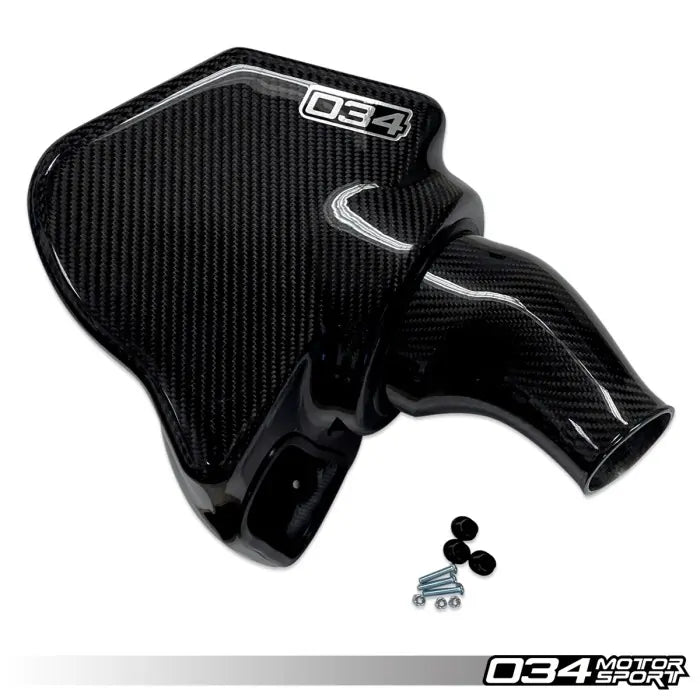

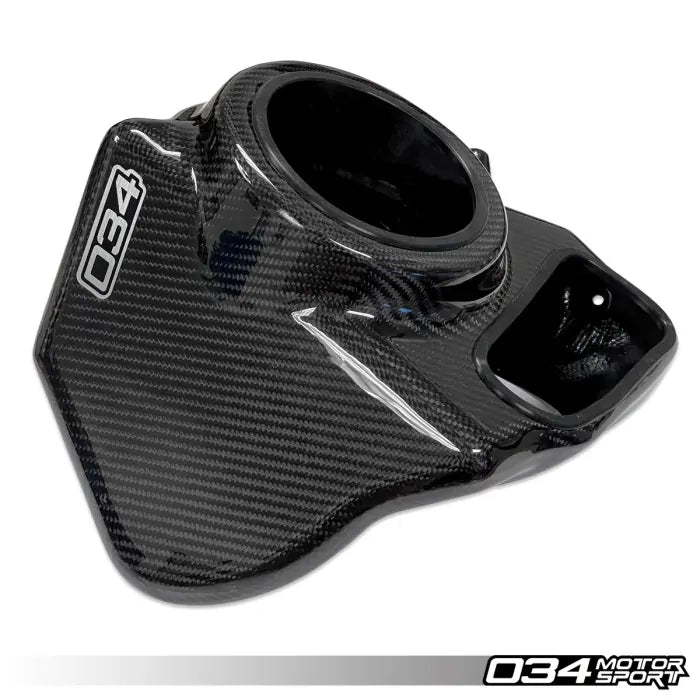

- High-Quality Carbon Fibre Air Duct, Airbox, and Filter Tube Construction
- High-Gloss Epoxy Finish
- OEM+ Fit and Finish
- High Strength Metal Inner Ring at Clamp Points
- Dyno-Proven Horsepower Torque Gains
- Improved Airflow from Factory Airbox and Intake Tube
- Enhanced Engine Induction Sounds
- Improved Throttle Response
- Massive 5" Inlet Conical Pleated Cotton Air Filter

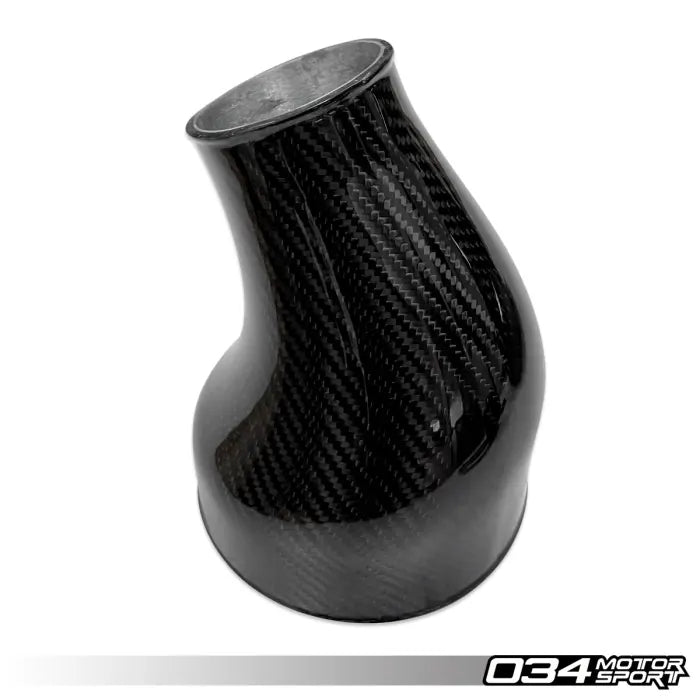

- Large-Diameter CFD-Optimized Carbon Fibre Filter Tube
- Reduced Intake Air Temperature
- Securely Installs Using Factory Mounting Grommets
- Simple, Straightforward Installation Instructions
SüperDüper Carbon Fibre Turbo Inlet & Insuction Bundle Features:
- CNC Machined 6061-T6 Aluminium Compressor Inlet Flange Adapters for Smooth Airflow Into Compressor Housings
- CNC Machined 6061-T6 Aluminium Turbo Inlet Adapters to Match Turbo Inlet for Maximum Airflow
- Optional Adapter Flanges Available
- Retains OE PCV Hose Connections
- Proven Power/Torque, and Airflow Gains
- Longer Engine Cover Studs to Help Clear the SüperDüper Inlet
- Deeper Oil Filler Seal to Accommodate Raised Engine Cover
- Direct Bolt-on Installation.
CFM Gains:
CFM stands for "cubic feet per minute" of airflow, the higher the number, the higher the horsepower an intake can support, at 034Motorsport we design our intakes to have substantial flow increases over the factory intake, we test all our intakes at 28" of water (how much vacuum is used to suck air through the intake) on a Superflow airflow bench which gives us very accurate and repeatable test results. A stock intake that flows 200CFM may only freely support about 300HP. An intake that flows 400CFM can support roughly twice that power or 600HP. With the measured flow from the X34 SüperDüper Insuction Bundle, we find that the system is more than capable of supporting well over 1000hp of restrictionless flow.
- Stock Intake & Turbo Inlet Assembly: 526 CFM @ 28in H²O
- X34 SüperDüper Insuction Bundle w/ Stock Turbo Adapter Flange: 783 CFM @ 28in H²O, 49% Increase
- X34 SüperDüper Insuction Bundle w/ TTE720 Adapter Flange: 908 CFM @ 28in H²O, 73% Increase

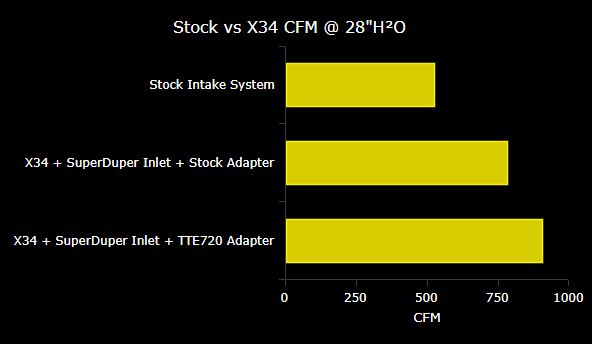

CFM Comparison Chart:
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | RS4 | 2018+ | B9/B9.5 | 2.9 TFSI |
| Audi | RS5 | 2018+ | B9/B9.5 | 2.9 TFSI |
