034 - Billet Aluminium MQB Rear Subframe Mount Inserts, Audi S3/RS3 8V, TT/TTS, MK7 Volkswagen Golf R - 034-601-0032
- This product is in stock and ships from a local Australian warehouse.
- Shipping time is approximately same or next business day . Transit time is usually 2-3 days.
- Ships via AUSPOST Express or Couriers Please Express.

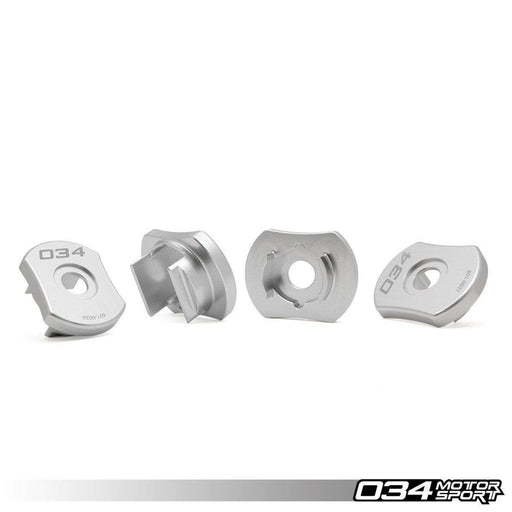

034 Motorsports Billet Aluminium MQB Rear Subframe Mount Inserts. Fits Audi 8V RS3/S3/TT/TTS & MK7 Volkswagen Golf R.
Tighten up the rear end of your MQB AWD vehicle with the 034Motorsport Billet Aluminium Rear Subframe Mount Inserts. Designed to eliminate excessive subframe movement caused by the factory rubber mount voids, these inserts significantly improve rear-end stability, cornering confidence, and overall chassis precision without introducing additional NVH.
MQB Audi and Volkswagen vehicles equipped with Haldex AWD suffer from subframe deflection under load, especially during hard acceleration, cornering, or spirited driving. This can result in vague rear-end feedback, compromised suspension geometry, and increased understeer. These billet inserts fill the voids in the factory rubber bushings to lock the subframe into place—creating a more planted, predictable, and enjoyable driving experience.
Tested extensively in-house at 034Motorsport and validated by independent Audi/VW enthusiasts, these inserts offer a transformative improvement and remain fully reversible.
Features
-
T6-6061 billet aluminium construction
-
CNC-machined in-house for precise tolerances
-
Clear anodized finish for corrosion resistance
-
Fills voids in the OEM rear subframe bushings
-
Helps maintain proper suspension geometry under load
-
Reduces rear subframe movement during acceleration and launches
-
Improves shifting feel with reduced drivetrain deflection
-
Works exceptionally well with upgraded rear sway bars
-
No noticeable increase in cabin NVH
-
Simple, fast, fully reversible installation
What’s Included
-
034Motorsport Billet Aluminium MQB AWD Rear Subframe Inserts – Front Pair
-
034Motorsport Billet Aluminium MQB AWD Rear Subframe Inserts – Rear Pair
-
Installation instructions (PDF)
Fitment Table (MQB AWD Only – Haldex Equipped)
| Make | Model | Years | Chassis | Notes |
|---|---|---|---|---|
| Audi | A1 / S1 | 2015–Present | 8X | Quattro only |
| Audi | A3 / S3 / RS3 | 2015–Present | 8V / 8V.5 MQB | AWD models only |
| Audi | TT / TTS / TTRS | 2016–Present | 8S (Mk3 MQB) | AWD models only |
| Volkswagen | Golf R | 2015–Present | MK7 MQB | 4Motion |
| Volkswagen | Golf Sportwagen / Alltrack | 2015–Present | MK7 MQB | 4Motion |
| Audi | TT / TTS / TTRS | 2013–2015 | 8J (late build) | AWD only; build date after 29/05/2012 |
Does NOT fit:
-
2.0 TDI models
-
Front-wheel-drive vehicles
Service Part:
This product serves as a chassis reinforcement upgrade, ideal when upgrading sway bars, performing drivetrain improvements, or refreshing worn subframe bushings.
- Professional installation is strongly recommended.
Disclaimer
Always consult with a professional mechanic.
If unsure, please contact us for compatibility via email: info@vaggarage.com.au
SKU: 034-601-0032
