ECS Tuning - Stainless Steel High Capacity Oil Pan EA888.4 S3 8Y, MK8/8.5 R, T Roc

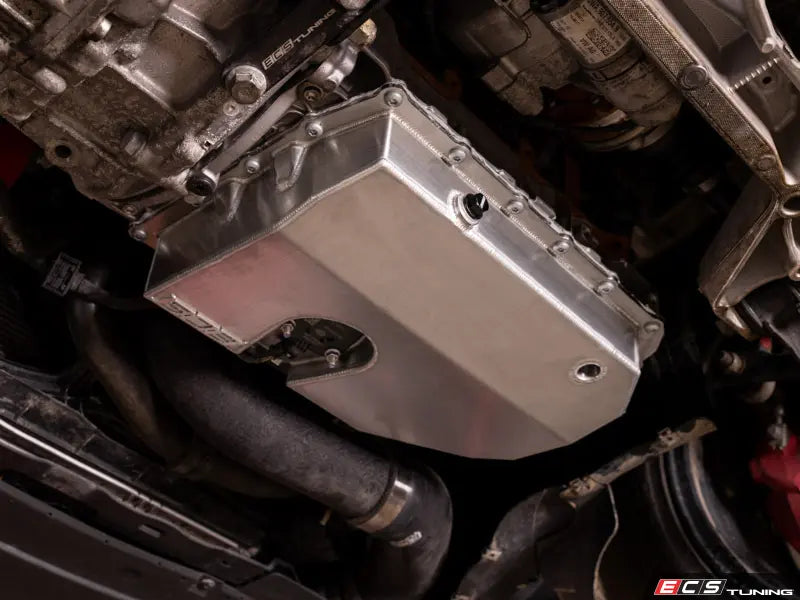

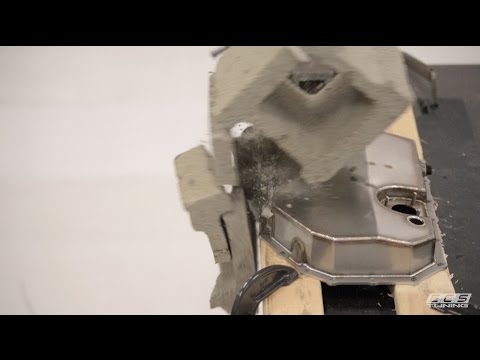

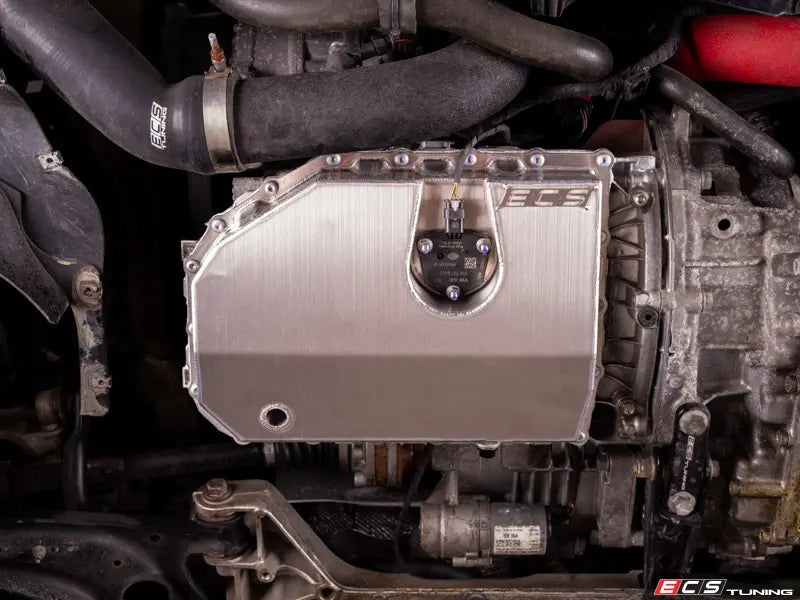

Protect your engine with the ECS Tuning Stainless Steel Oil Pan, designed for transverse-mounted Evo4 TSI engines. Constructed from heavy-duty 11-gauge (1/8") T304 stainless steel, this oil pan offers significantly greater impact resistance than the factory plastic or cast aluminium alternatives while maintaining excellent ground clearance.

Each oil pan is precision TIG welded, pressure tested for leak-free performance, and features a CNC-machined 3/16" T304 stainless mounting flange to ensure a perfect sealing surface.

Designed with both durability and performance in mind, the sump is reshaped to increase oil capacity by approximately 1.0–1.5 litres, helping improve oil temperature stability and extending the life of your engine oil.

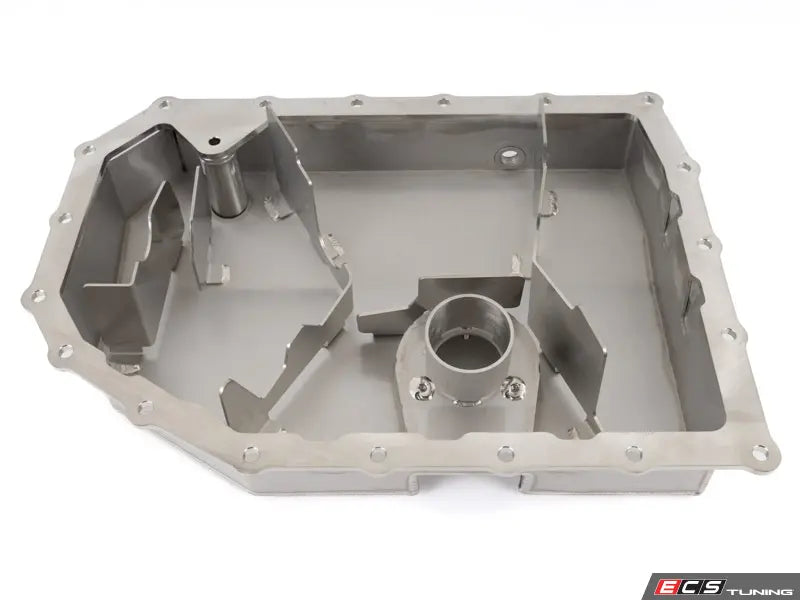

An integrated internal baffle helps keep oil around the pickup during hard acceleration, braking and cornering, reducing the risk of oil starvation under high-performance driving conditions.

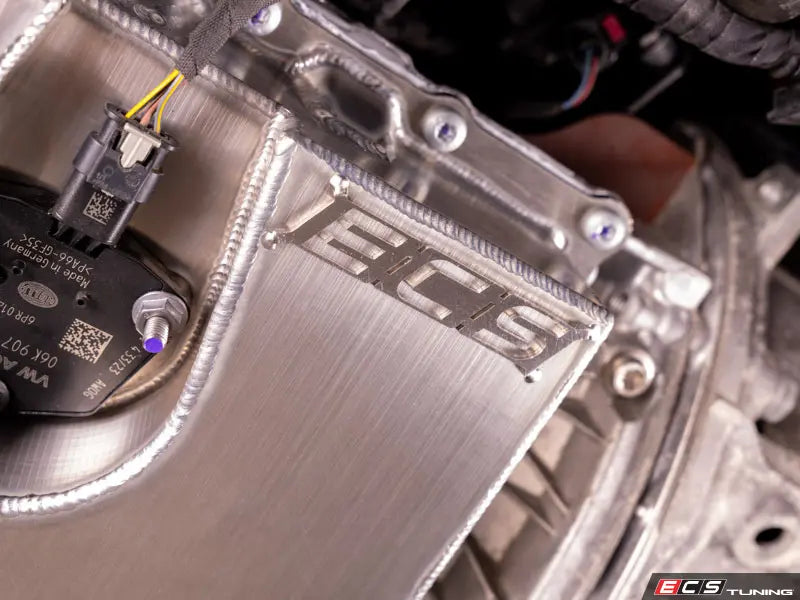

Factory provisions for the OEM oil level sensor are retained for direct plug-and-play installation. The pan also features an M14x1.5 drain plug thread and includes an ECS magnetic drain plug to help capture harmful metal particles circulating through the engine.

Features:

• Heavy-duty 11-gauge (1/8") T304 stainless steel construction

• 100% TIG welded and pressure tested

• CNC-machined 3/16" stainless mounting flange

• Approximately 1.0–1.5L increased oil capacity

• Integrated oil control baffle to reduce oil starvation

• Retains factory oil level sensor

• M14x1.5 magnetic drain plug included

• Excellent impact resistance while maintaining ground clearance

• Designed for transverse-mounted Evo4 TSI engines

• Made in the USA

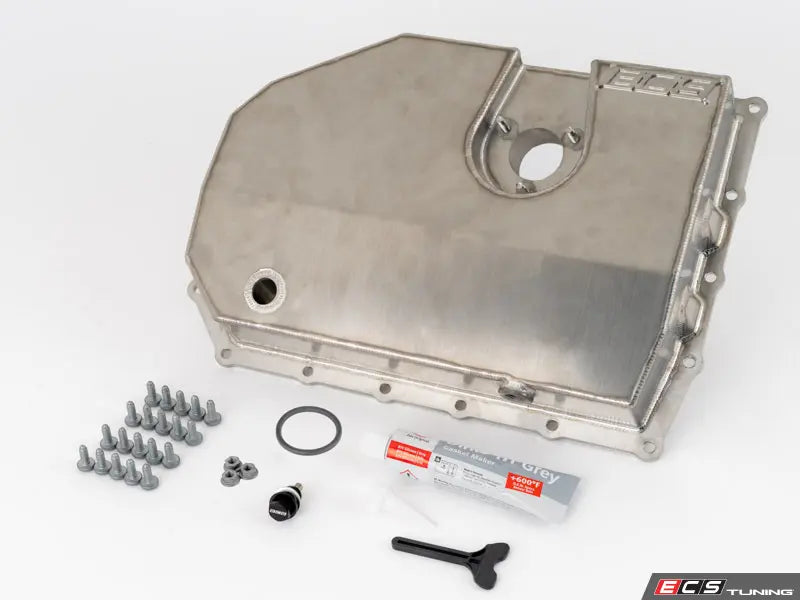

Kit Includes:

• ECS Stainless Steel Oil Pan

• ECS Magnetic Drain Plug

• Oil Level Sensor Hardware

• Installation Hardware
