ECS Tuning Stainless Steel Oil Pan - MQB EA888.3 - A3/S3 8V/8.5V MK7/7.5 GTI/R

ECS Tuning Stainless Steel Oil Pan - MQB EA888.3 - A3/S3 8V/8.5V MK7/7.5 GTI/R

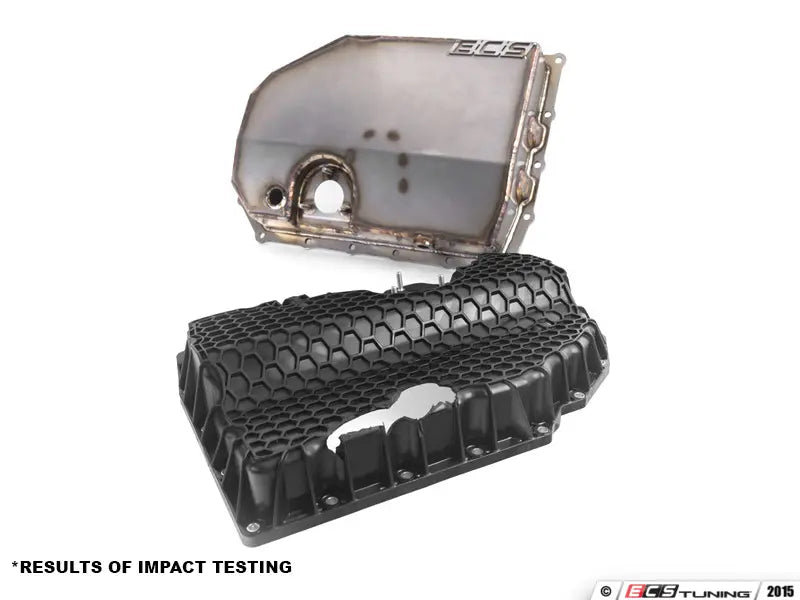

Protect your engine with confidence using the ECS Tuning Stainless Steel Oil Pan Kit for MQB EA888 Gen 3 engines. Designed as a direct replacement for the factory plastic oil pan, this heavy-duty upgrade provides superior impact resistance, increased oil capacity, and improved oil control without sacrificing ground clearance.

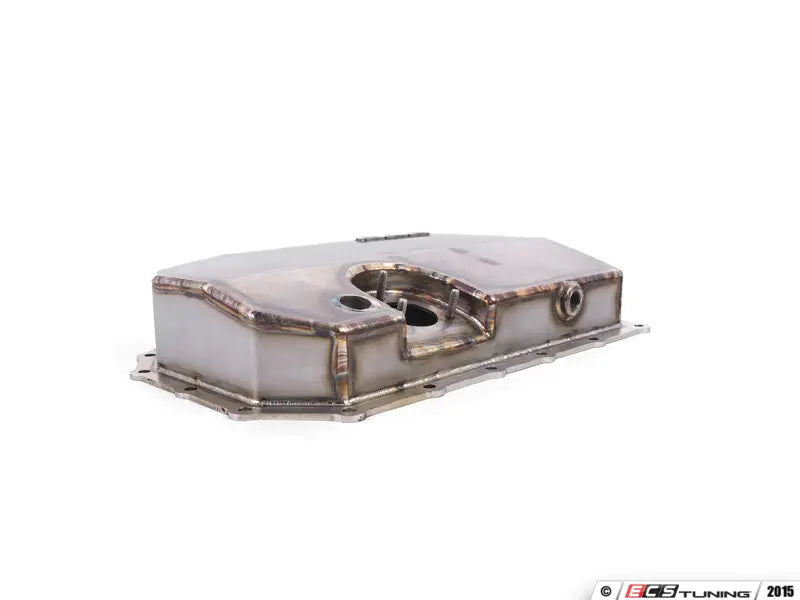

Constructed from 11-gauge (1/8") T304 stainless steel, the pan is fully TIG welded and pressure tested to ensure a leak-free seal. The mounting flange is laser-cut from 3/16" T304 stainless steel, then precision machined and checked for flatness to provide reliable sealing.

Six welded side gussets reinforce the pan for added strength, while the integrated M14x1.5 drain plug bung allows the use of the included ECS magnetic drain plug. Factory provisions for the OEM oil level sensor are retained for a direct plug-and-play installation.

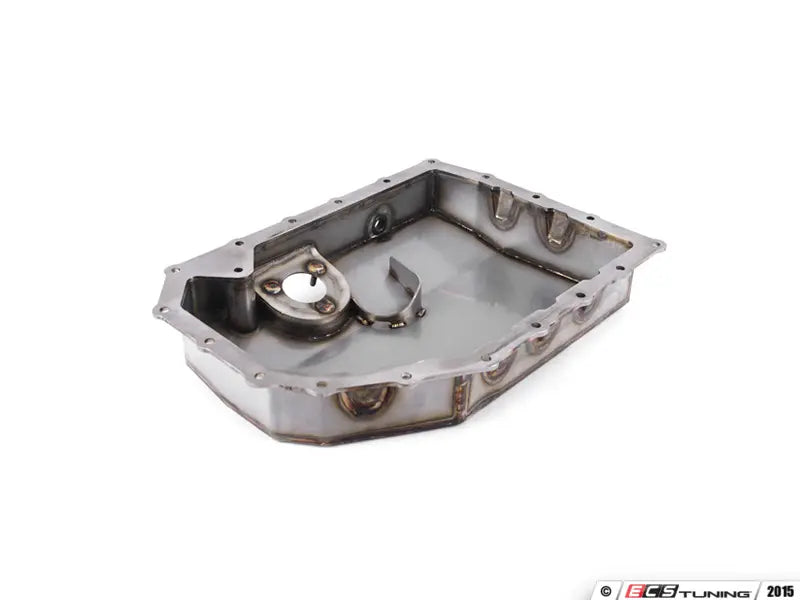

The redesigned sump increases oil capacity by approximately 1.0-1.5 litres, helping to maintain more consistent oil temperatures while providing a larger oil reserve. An integrated internal baffle keeps oil around the pickup during hard acceleration, braking and cornering, reducing the risk of oil starvation during spirited driving.

Manufactured in the USA, this oil pan has undergone extensive development and testing to deliver long-lasting protection for both street and performance vehicles.

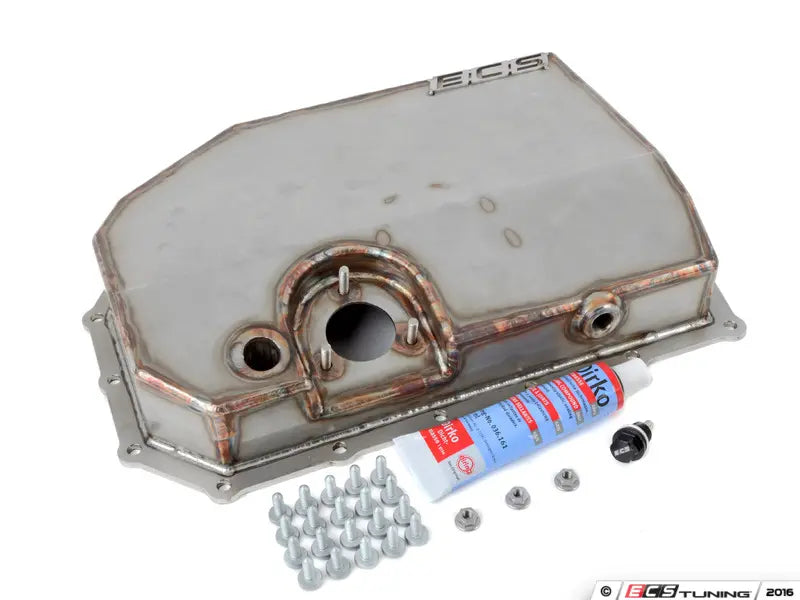

Kit Includes

• ECS Stainless Steel Oil Pan

• ECS Magnetic M14x1.5 Drain Plug with Crush Washer

• Oil Pan Mounting Bolts (Qty. 20)

• Oil Level Sensor Securing Nuts (Qty. 3)

• 70ml Oil Pan Gasket Sealant

Features

• Direct replacement for the factory MQB plastic oil pan

• Heavy-duty T304 stainless steel construction

• 100% TIG welded and pressure tested

• Integrated internal oil control baffle

• Approximately 1.0-1.5L increased oil capacity

• Reinforced with six welded side gussets

• Retains factory oil level sensor

• Includes ECS magnetic drain plug

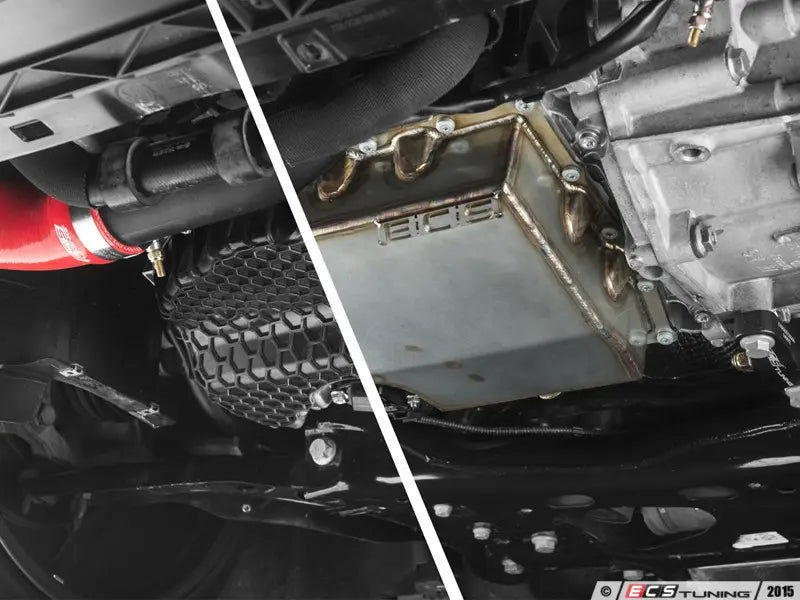

• Maintains near-OEM ground clearance

• Made in the USA

Technical Specifications

• Material: T304 Stainless Steel

• Floor Thickness: 11 Gauge

• Wall Thickness: 14 Gauge

• Oil Pan Weight: 8.75 lbs (3.97kg)

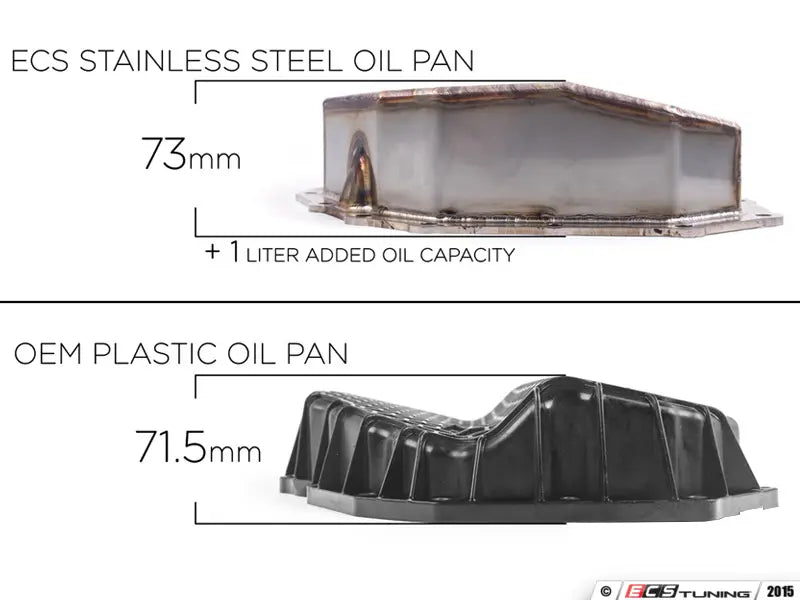

• Maximum Height: 73.0mm (OEM: 71.5mm)

• Additional Oil Capacity: Approximately 1.0-1.5 Litres

Vehicle Compatibility

Audi

• A3 8V 1.8 TFSI FWD

• A3 8V 2.0 TFSI FWD

• A3 8V 2.0 TFSI Quattro

• S3 8V 2.0 TFSI Quattro

• TT FV (8S) 2.0 TFSI Quattro

Volkswagen

• Golf Mk7 1.8 TSI

• Golf Mk7 GTI 2.0 TSI

• Golf Mk7 R 2.0 TSI

• Golf Mk7 Alltrack 2.0 TSI

• Golf Mk7 SportWagen 1.8 TSI

• Golf Mk7.5 1.8 TSI

• Golf Mk7.5 GTI 2.0 TSI

• Golf Mk7.5 R 2.0 TSI

• Golf Mk7.5 SportWagen 1.8 TSI

• Jetta GLI Mk7 2.0 TSI

• Jetta GLI Mk7.5 2.0 TSI

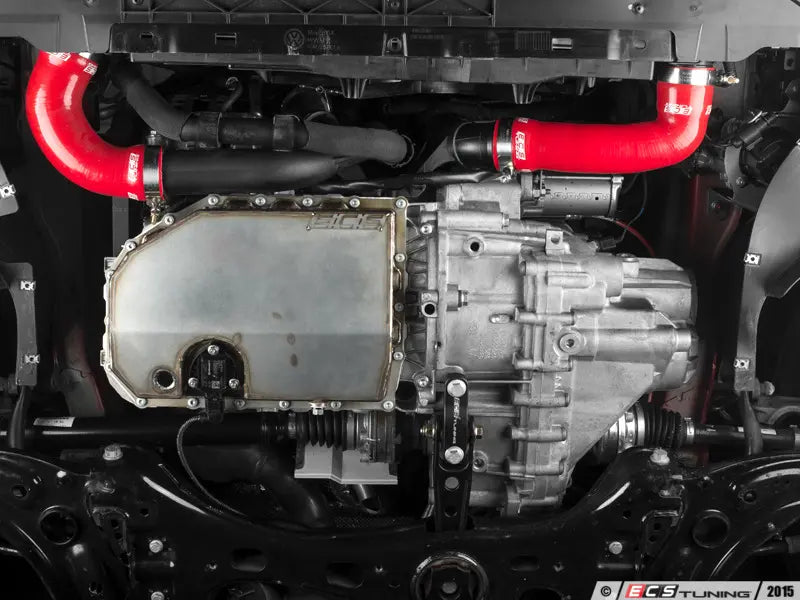

Installation

ECS TSI Stainless Steel Oil Pan

TSI Oil Pan Torque Notice
