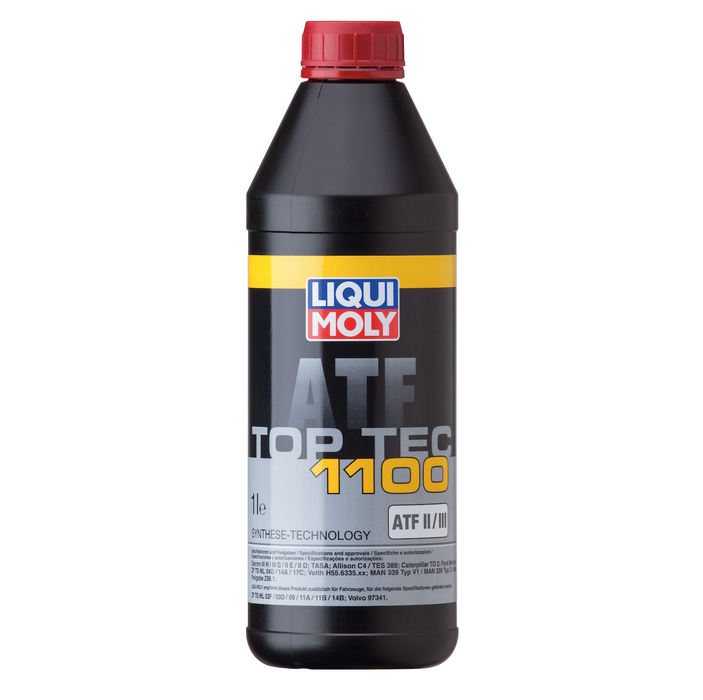

LIQUI MOLY Top Tec ATF 1100 (1L) – Automatic Transmission Fluid – Dexron III G / MB 236.1 / ZF TE-ML 04D
- This product is on backorder and ships from a local Australian warehouse.
- Shipping time is approximately in 2 weeks . Transit time is usually 2-3 days.
- Ships via AUSPOST Express or Couriers Please Express.
LIQUI MOLY Top Tec ATF 1100 (1L) – Automatic Transmission Fluid – Dexron III G / MB 236.1 / ZF TE-ML 04D
LIQUI MOLY Top Tec ATF 1100 is a synthetic technology automatic transmission fluid designed for automatic transmissions, manual shift transmissions, power steering systems, and hydraulic drives in both passenger and commercial vehicles. It offers excellent wear protection, high thermal stability, and optimal friction behavior, ensuring smooth operation, long service life, and compatibility with all sealing materials.
Formulated with modern additive technology and high-performance base oils, this ATF provides maximum reliability, stable viscosity, and superior aging resistance, even under high stress and wide temperature ranges.
Key Benefits:
Excellent viscosity and temperature stability – consistent performance in all conditions
Highest thermal stability – resists breakdown under extreme heat
Outstanding friction characteristics – ensures smooth gear shifts
Minimizes wear – advanced additives extend transmission life
High chemical and oxidation resistance – protects internal components
Excellent corrosion protection – prevents metal surface damage
Optimum aging stability – reliable performance over long service intervals
Very good low-temperature flow – fast lubrication in cold starts
Specifications / Approvals
Approvals:
Allison C4
Dexron III G / Dexron III H
Dexron TASA (Type A/Suffix A)
DTFR 13C100
Ford Mercon
MAN 339 Typ L1 / V1 / Z1
MB 236.1
Voith H55.6335.XX (G 607)
ZF TE-ML 03D / 04D / 14A / 17C
ZF Approval No. ZF004926
Recommended for:
Allison TES 389
Caterpillar TO-2
Ford ESP-M2C166-H
MB 236.6
Volvo 97341
ZF TE-ML 02F / 09 / 11A / 11B / 14B
Technical Data:
| Property | Typical Value | Test Method |
|---|---|---|
| Density @ 15 °C | 0.845 g/cm³ | DIN 51757 |
| Viscosity @ 40 °C | 36 mm²/s | ASTM D7042 |
| Viscosity @ 100 °C | 7.5 mm²/s | ASTM D7042 |
| Viscosity @ -40 °C (Brookfield) | ≤ 20,000 mPas | ASTM D2983 |
| Viscosity Index | 180 | DIN ISO 2909 |
| Pour Point | −48 °C | DIN ISO 3016 |
| Flash Point | 220 °C | DIN ISO 2592 |
| Sulfate Ash | 0.1 g/100g | DIN 51575 |
| Shear Stability @ 100 °C (100h) | 5.4 mm²/s | DIN 51350-06-KRL/C |
| Color | Red | ASTM D1500 |
Applications:
Suitable for automatic and manual transmissions, power steering systems, hydraulic systems, and auxiliary drives in passenger cars, commercial vehicles, and industrial equipment.
Ideal for:
-
Transmissions from ZF, Voith, Mercedes-Benz, MAN, Ford, and Volvo
-
Vehicles requiring Dexron III, MB 236.1, or ZF TE-ML 04D specification
-
Long oil-change intervals and high-temperature applications
-
Systems compatible with traditional ATF fluids (for top-up or full refill)
