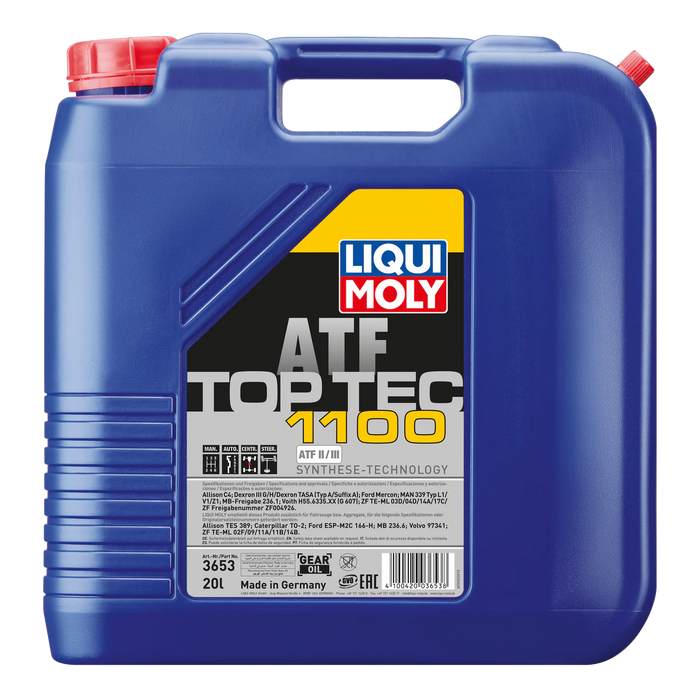

LIQUI MOLY Top Tec ATF 1100 (20L) – Automatic Transmission Fluid – Dexron III G / MB 236.1 / ZF TE-ML 04D
- This product is on backorder and ships from a local Australian warehouse.
- Shipping time is approximately in 2 weeks . Transit time is usually 2-3 days.
- Ships via AUSPOST Express or Couriers Please Express.
LIQUI MOLY Top Tec ATF 1100 (20L) – Automatic Transmission Fluid – Dexron III G / MB 236.1 / ZF TE-ML 04D
LIQUI MOLY Top Tec ATF 1100 is a synthetic technology automatic transmission fluid designed for automatic transmissions, manual shift transmissions, power steering systems, and hydraulic drives in both passenger and commercial vehicles. It provides excellent aging resistance, stable friction performance, and superior wear protection, ensuring smooth operation and a long service life for transmission components.
This ATF offers high thermal stability, optimum viscosity across temperatures, and excellent low-temperature flow properties, making it ideal for both all-season and high-load applications.
Key Benefits:
Excellent viscosity and temperature stability – consistent performance in all conditions
Highest thermal stability – resists breakdown under high operating temperatures
Outstanding friction characteristics – ensures smooth, reliable shifting
Minimizes wear – advanced additive package extends transmission life
High chemical resistance – protects seals and components
Excellent corrosion protection – prevents damage to internal components
Optimum stability to aging – maintains performance over extended intervals
Very good low-temperature properties – enables fast hydraulic response in cold conditions
Specifications / Approvals:
Approvals:
Allison C4
Dexron III G / Dexron III H
Dexron TASA (Type A/Suffix A)
DTFR 13C100
Ford Mercon
MAN 339 Typ L1 / V1 / Z1
MB 236.1
Voith H55.6335.XX (G 607)
ZF TE-ML 03D / 04D / 14A / 17C
ZF approval number: ZF004926
Recommended for:
Allison TES 389
Caterpillar TO-2
Ford ESP-M2C166-H
MB 236.6
Volvo 97341
ZF TE-ML 02F / 09 / 11A / 11B / 14B
Technical Data:
| Property | Typical Value | Test Method |
|---|---|---|
| Density @ 15 °C | 0.845 g/cm³ | DIN 51757 |
| Viscosity @ 40 °C | 36 mm²/s | ASTM D7042 |
| Viscosity @ 100 °C | 7.5 mm²/s | ASTM D7042 |
| Viscosity @ -40 °C (Brookfield) | ≤ 20,000 mPas | ASTM D2983 |
| Viscosity Index | 180 | DIN ISO 2909 |
| Pour Point | −48 °C | DIN ISO 3016 |
| Flash Point | 220 °C | DIN ISO 2592 |
| Sulfate Ash | 0.1 g/100g | DIN 51575 |
| Shear Stability @ 100 °C (100h) | 5.4 mm²/s | DIN 51350-06-KRL/C |
| Color | Red | ASTM D1500 |
Applications:
Developed for automatic and manual transmissions, power steering, hydraulic systems, and auxiliary drives in both passenger cars and commercial vehicles, as well as in industrial applications.
Suitable for:
-
ZF, Voith, Mercedes-Benz, MAN, Ford, and Volvo transmissions
-
European and American vehicles requiring Dexron III or MB 236.1 specification
-
Long oil-change intervals and high-temperature applications
-
Systems using traditional ATF fluids (for refills or full replacements)
