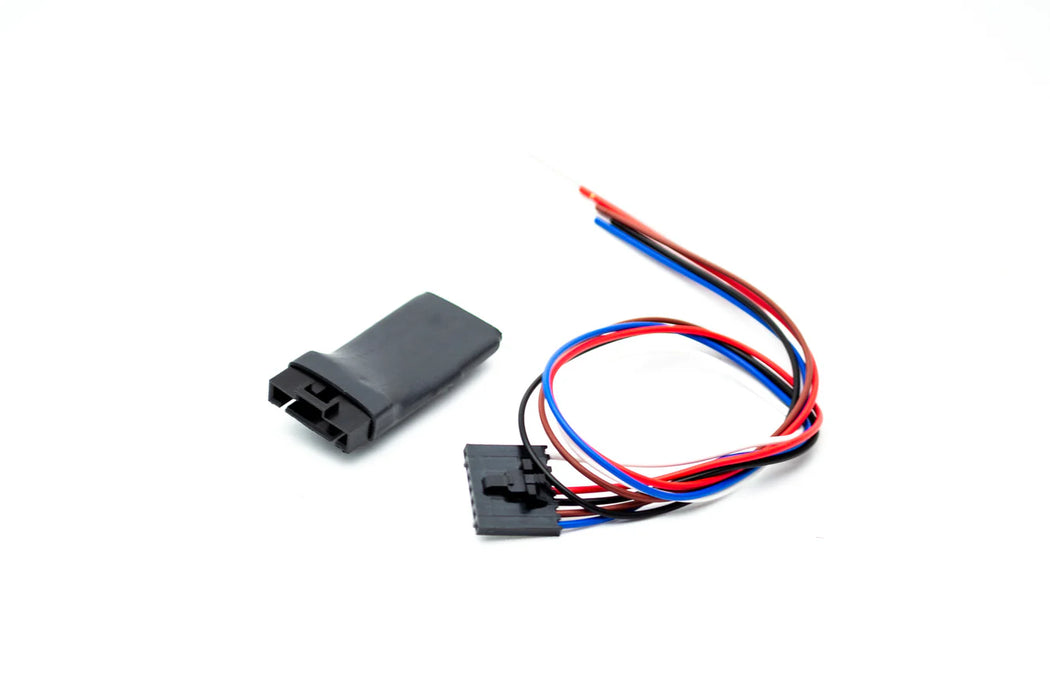

Ethanol Sensor Voltage Adaptor (ESVA)
Looking for a simple way to read ethanol content directly from your ethanol (FlexFuel) sensor?
The P3 Ethanol Sensor Voltage Adaptor allows your P3 Gauge—or any compatible 0–5V input gauge—to accurately display ethanol content and fuel temperature straight from a Continental/GM-style ethanol sensor.
When used with a P3 Gauge, simply select EC (Ethanol Content) or FT (Fuel Temperature) on one of the universal analog inputs.
Key Features
-
Allows any 0–5V linear input gauge to read data from a Continental/GM ethanol sensor
-
Two dedicated outputs:
-
Ethanol Content
-
Fuel Temperature
-
-

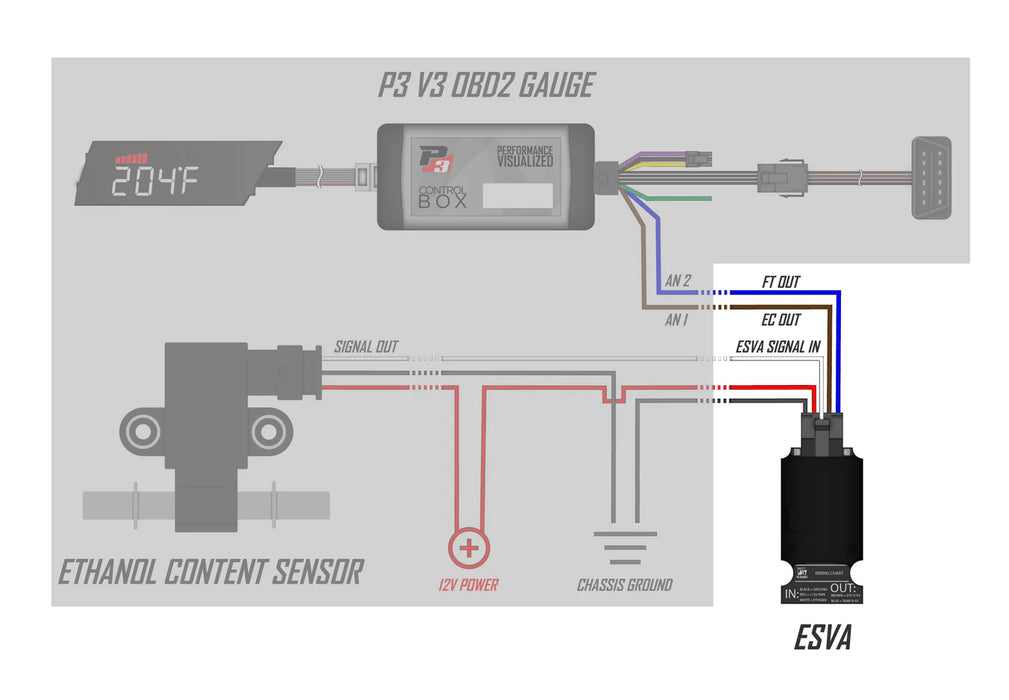

Easy inline installation between ethanol sensor and gauge
-
Taps into the sensor signal and connects directly to gauge, 12V power, and ground
Important Notes:
-
Ethanol sensor is NOT included
-
Not waterproof – must be protected from the elements
-
Recommended to mount near the P3 Gauge control box for best protection
Note: Please send us an email if you are unsure of fitment before purchasing.
SKU: P3ESVA
