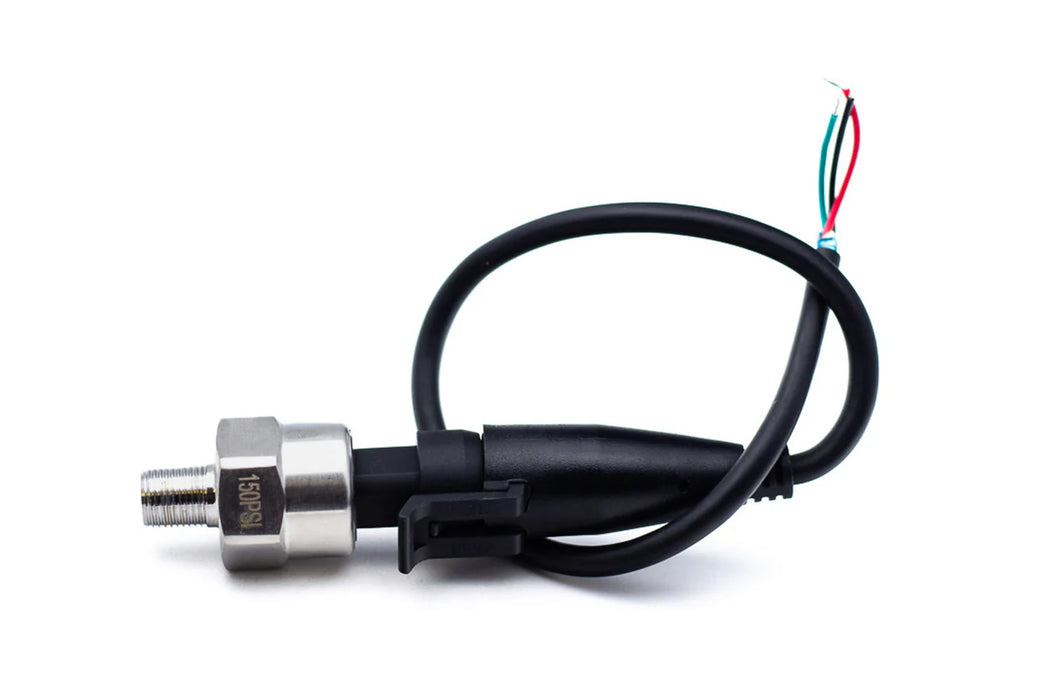

0–150 PSI Pressure Sensor (0–5V)

0–150 PSI Pressure Sensor (0–5V)

Keep an eye on critical pressures with this simple and versatile analog pressure sensor, designed for use with the P3 Gauge and other 0–5V input systems.

To use with a P3 Gauge, simply select the “PS” (Pressure Sensor) option on one of the universal analog inputs.

Key Features

• 0–150 PSI pressure sensor

• Adds real-time pressure readout to the P3 Gauge via analog input

• Suitable for oil, water, or air pressure monitoring

• Includes approx. 10-inch wiring harness

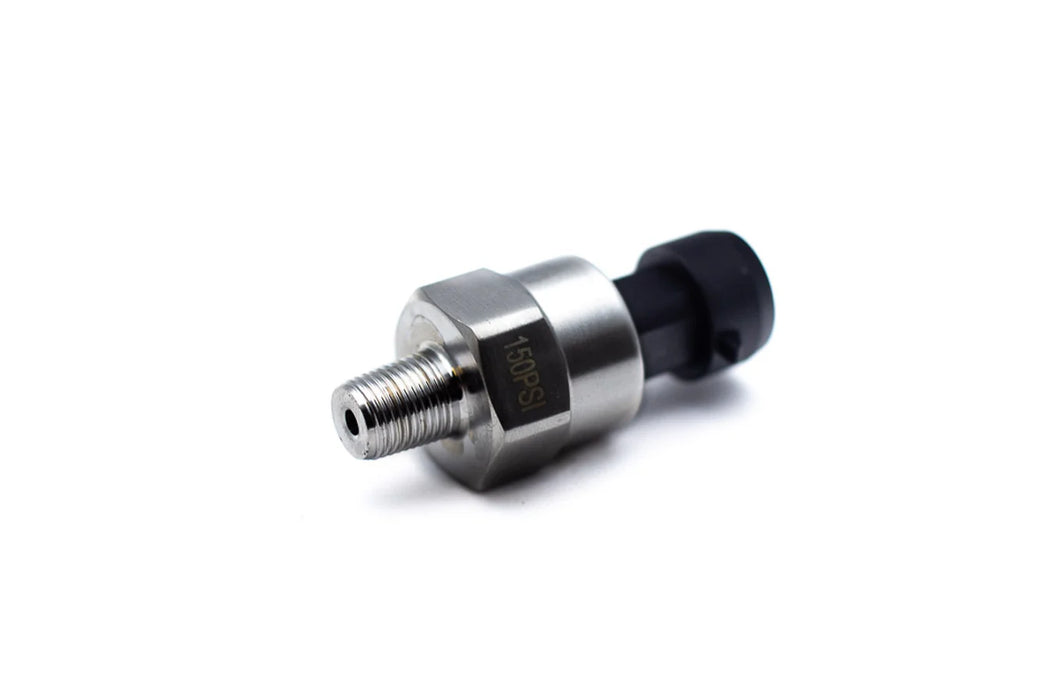

• 1/8" NPT fitting

• Can be “T’d” into the oil pressure gallery alongside the factory pressure switch

Common Monitoring Applications

• Engine oil pressure

• Air ride pressure

• Coolant system pressure

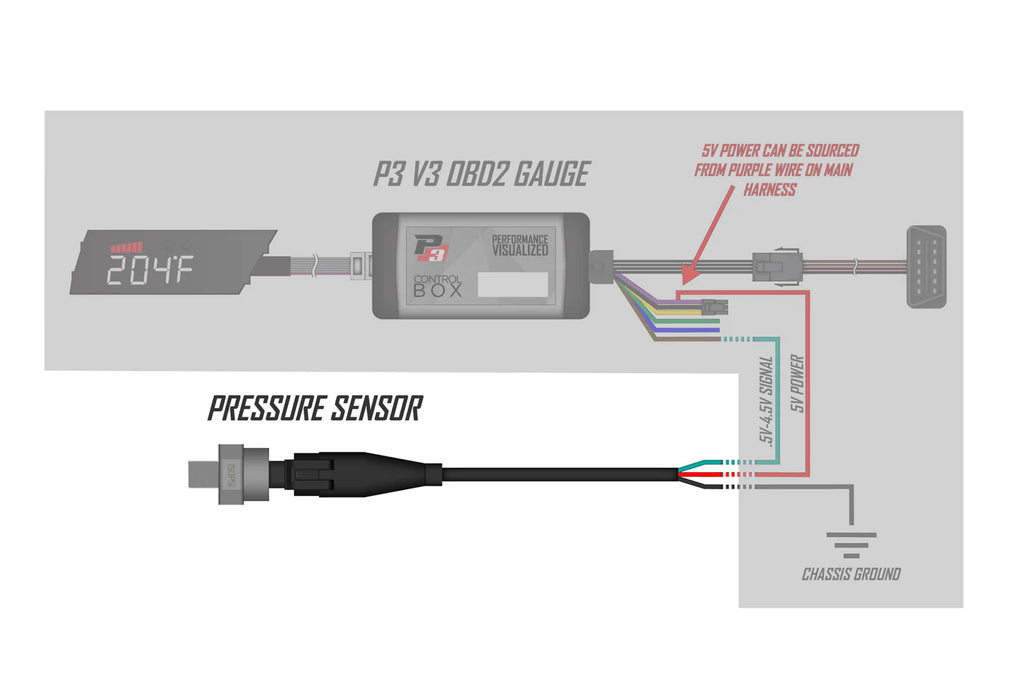

Wiring Information

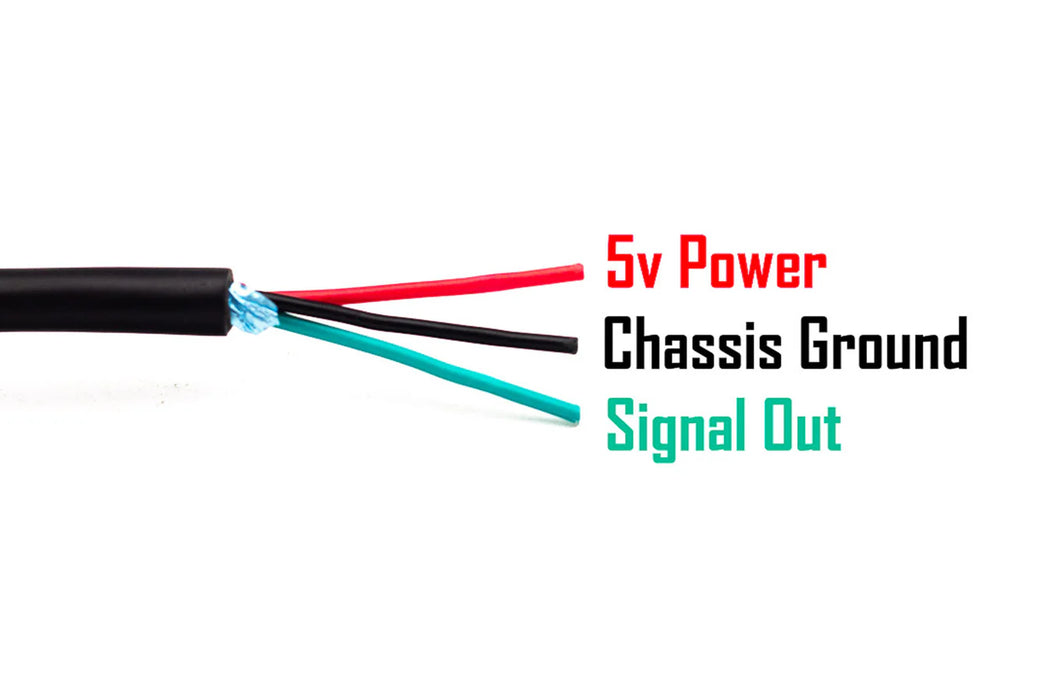

Simple 3-wire setup:

• Red – 5V power supply (DO NOT power with 12V; can be sourced from the purple wire on the P3 harness)

• Black – Chassis ground

• Green – Signal output (connect to brown or blue wire on P3 harness)

⚠️ Important: This is a 5V sensor only. Supplying 12V will damage the sensor.

SKU: P3PSEN
